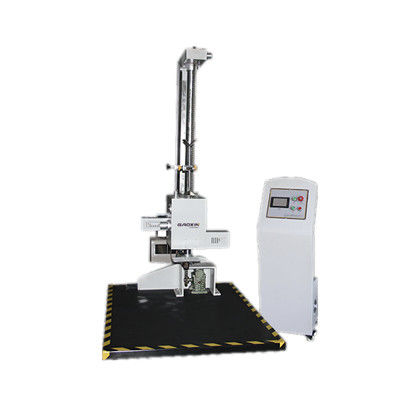

Single Column Electromagnetic Free Fall Drop Tester / Heavy Load Package Drop Testing Machine

China Single Column Electromagnetic Free Fall Drop Tester / Heavy Load Package Drop Testing Machine supplier

Large Image :  Single Column Electromagnetic Free Fall Drop Tester / Heavy Load Package Drop Testing Machine

Product Details:

Place of Origin: Guangdong
Brand Name: GAOXIN
Certification: ISO
Model Number: GX-6050-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 25 working days after payment
Payment Terms: L/C, , T/T,
Supply Ability: 30 sets per month
Detailed Product Description
Maximum Weight Of The Specimen: 100 Kg Maximum Size Specimen: 100-80*100cm
Drop Height: 300~1500mm Motor Power: 0.37KWA

Single Column Electromagnetic Free Fall Drop Tester Heavy Load Package Drop Testing Machine



1.Quick Details


Alternative name Power Battery Drop Free Testing Machine
Function Test packaging material, battery (large power battery)'s damaged degree when free drop from certain height
Type Single wing electromagnetic type
Weight 700kg
Volume 1700mm*1200mm*2300mm
Corresponding test standard GB/T4857.5-92, ISO02448-1972E, QC/T743, QC/T744





2.Description





is used to test the product packaging by the fall of the damage, and assessment of transport handling process, impact resistance, mainly to meet the product packaging to withstand the conditions of transport capacity, so as to improve and perfect the packaging design.





3.Features



1 single wing drop tester to do free drop test of the package surface, angle, edge, with digital height indicator and height tracking decoder, which can accurately give the product drop height, and the pre-set drop height error of less than 2%, or 10 mm.


2 single wing drop test machine using a single-arm and double column structure, with electric reset, electronically controlled drop and electric lift device, easy to use. Unique hydraulic buffering device greatly improve the life of the machine, the stability and safety of single-arm set can be easily placed on the product, the drop angle impact surface floor plane angle error is less than 5 degrees.





4.Specifications

Model GX-6050-A
Height of drop free 300-1500mm (or customer specified)
Max. Weight of specimen 100 (or customer specified)
Max. Dimension of specimen 1000 ×800× 1000mm
Base panel 1700 ×1200× 20mm
Height error ±10mm
Fell flat error ≦1°
Drive type Single wing electromagnetic
Display of height LED digital data display; 0.01mm
Motor capacity (KWA) 0.37
Outside dimension 1700mm*1200mm*2300mm
Net weight 700kg
Power 380V, 50/60HZ, 15A
