• ISO 3380 Leather Testing Equipment Leather Shrinkage Temperature Tester
ISO 3380 Leather Testing Equipment Leather Shrinkage Temperature Tester

ISO 3380 Leather Testing Equipment Leather Shrinkage Temperature Tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5097

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Leather Shrinkage Temperature Tester Test Standard: ISO 3380, QB/T 1271, QB/T 2713
Heating Speed: 2℃/min Temp. Difference: 〈1℃
Vessel: 500ml
High Light:

material testing equipment

,

shoe testing machine

Product Description

ISO 3380 Leather Testing Equipment Leather Shrinkage Temperature Tester




Description:



This tester is used for the test of determine leather shrinkage temperature, the test piece is heated at a specified rate in water until a sudden shrinkage occurs.

The machine is simple to operate, the test result and the temperature is intuitive.


 Features:

  • Testing result is accurate.
  • The structure is simple and easy to operate.
  • Made according to related corresponding international standard.

Test Standard: ISO 3380



Specification:



Vessel

500ml

Depth>110mm

Available at temperatures over 100℃

Fixed test sample holder Pin, (30±5)mm above the base of vessel
Movable test sample holder

Movable hook

One end is attached to the top of test piece, the other end is attached to a thread which passes over a pulley

Thermometer Graduated to 1℃, accurate to 0.5℃
Heater Heating rate of (2±0.2)℃/min
Stirrer Capable of sufficiently agitating the water in the vessel such that the temperatures at the top and bottom of the test piece do not differ by more than 1℃
Test sample

Prepare 4 pieces of sample

(50±2)mm X (3.0±0.2)mm thickness less than 3mm

(50±2)mm X (2.0±0.2)mm thickness over than 3mm




picture:

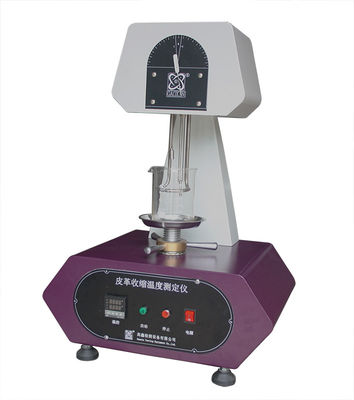

ISO 3380 Leather Testing Equipment Leather Shrinkage Temperature Tester 0
