Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO
Model Number: GX-3000-150LT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Non-fumingation wooden box
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Control System: TEMI Frozen System: Totally-closed, Semi-closed Compressor, Environmental Protection Refrigerant, Single Stage Or Cascade Refrigeration
Insulating Layer: Polyurethane Foam+glass Wool 10cm BTHC: PID+SSR
Heating And Cooling Speed: -40°C~+75°C Within 30mins Test Chamber Capacity: 80L, 150L, 225L, 408L, 800L,1000L
High Light:

Test Instruments

,

Adhesion Testing Equipment

Product Description

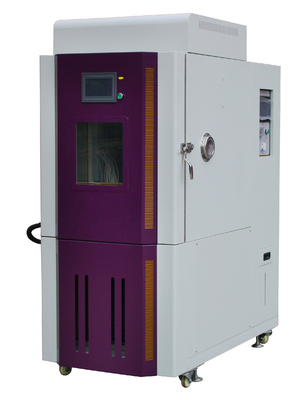

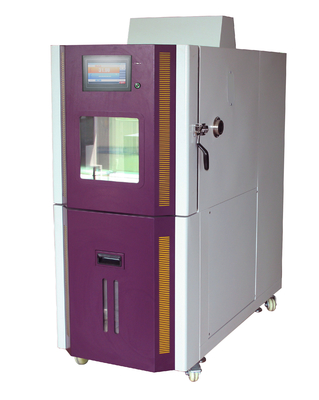

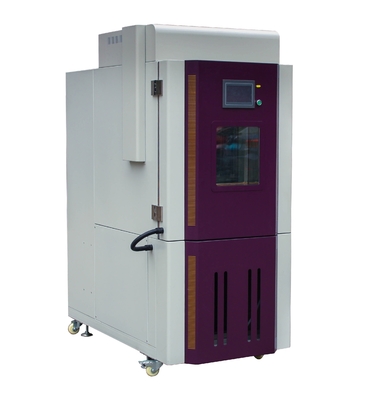

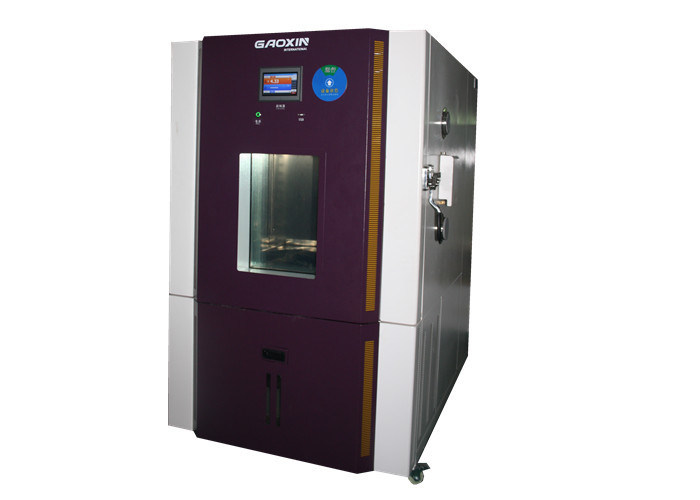

Cells Or Batteries Temperature Cycling Test Chamber



Programmable Temperature CyclingTest Chamber (Rapid Temperature Change Test Chamber)

Model number: GX-3000-150LT



Standards Basis:



UL 1642 "lithium battery standard"



UL 2054 "Household and Commercial Battery Pack"



UN38.3 "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria Part III"



MH / T 1052-2013 "Air Transport Lithium Battery Test Specification"



IEC62133-2012 "Safety requirements for batteries and accumulators containing alkaline or non-acidic electrolytes"



IEC 62281: 2004 "Safety Requirements for Lithium Batteries and Batteries in Transport"



IEC 60086: 2007 "Original battery Part 4 Safety requirements for lithium batteries"



Specification



Temperature range: -40°C ~ +150°C



Temperature control accuracy: ±0.01 °C



Temperature fluctuation: ≤±0.3°C



Temperature uniformity: ±1.5 °C (measured by the national measurement standard nine-point measurement method)



Temperature rise and fall: conversion between -40 and 75 °C is completed in 30 minutes (average temperature rise, non-linear no load)



Inner box size: 50×50×60 cm (the inner box space can be customized according to different customer requirements)



Outer box size: 80 × 165 × 140cm



Inner box material: SUS#304 first grade stainless steel



Insulation material: rigid foam (such as glass wool at 150 ° C)



Accessories: window, 2 adjustable upper and lower compartments, Ø50mm/Ø100mm1 hole for test hole, light inside the box,



Power: 3∮, AC380V±10%, 50Hz, 20A





Security system



Over temperature protector



Zero-crossing gate fluid power controller



Air-burning protection protector



Under phase reverse phase protection switch



Compressor high voltage protection switch



Compressor overheat protection switch



Compressor overcurrent protection switch



No fuse switch



Ceramic fast fuse



Line fuse and fully sheathed terminal



Buzzer



For more detail information please contact with us

Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 0
Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 1
Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 2
Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 3
Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 4
Cells Or Batteries -20°C ~ +75°C Temperature Cycling Test Chamber 80L 150L 225L 408L 800L 1000L 5
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
