AC220V Double Head Click Scribing Life Testing Machine and phone tester

AC220V Double Head Click Scribing Life Testing Machine and phone tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-5610-4C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Power: Electronic,220V Usage: Vibration Testing Machine,Drop Tester
Warranty: 1 Year Power Supply: 220V 50Hz
Application: Laptop,mobile/ Cell Phone,Mobile Phone Drop Testing Machine Standard: IEC60034,BS1006D02,IEC60529 IEC60598-1,AATCC8/165
Lead Time: Within 15 Days Supply: 300/month
Frequency Range: 50Hz
High Light:

AC220V Life Testing Machine

,

Click Scribing Life Testing Machine

,

Click Scribing Life Tester

Product Description

Click the scribing life Testing machine (double head)





This machine is used to point touch screen, and write life test equipment, the machine adopts mechanical structure drives the weight standard constant pressure, the simulation of product point, written test, life will also test head to switch to the HB pencil hardness test was carried out on the product of shell, the surface of the rubber hardness testing, test project of the spray paint hardness test, paint adhesion test. The machine is equipped with optional double-head pressure, adjustable speed, adjustable stroke, adjustable stop number, etc.



1. Product Name: Click the scribing life Testing machine (double head)


2. Product Model: GX-5610-4C



3. Technical Parameter:

Test station Click and underline 2 each
Wire rod 2
Point bar 2
Table size 750mm×350mm
Itinerary scope Click 50mm and underline 0mm-60mm
Test motivation Stepper motor
The test head Teflon or Chinese pencils of standard hardness HB
Mode of exercise Speed regulating motor
Test speed range

0.25-2 seconds/time

Preset measurement times can automatically stop Adjustable 0 ~ 99999999 times
Electrical source AC220V,50/60Hz,5A
Heavy volume 80kg



4. Picture

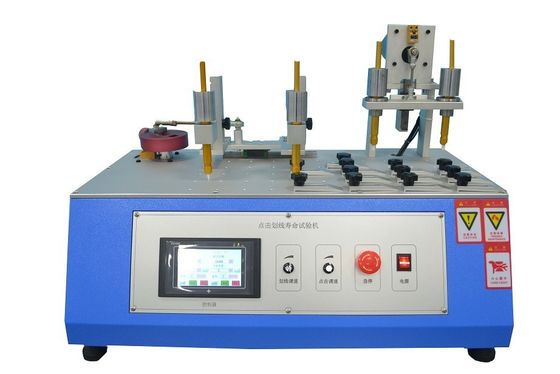

AC220V Double Head Click Scribing Life Testing Machine and phone tester 0



Gaoxin Testing Equipment Co, Ltd

Tensile Testing Equipment
Tensile Testing Equipment is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric,
tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force
with different fixtures according to national and international standards customer required.
Leather Testing Equipment
Leather Testing Equipment is widely used in leather industry for the quality tests of various kinds of leather or leather
products including abrasion test, waterproof test, crack test, softness test and so on.
Rubber Testing Equipment
Rubber Testing Equipment is widely used in the rubber and rubber products for the quality tests like abrasion test,
bending test, elasticity test, compression and tensile test.
Footwear Testing Equipment
Footwear Testing Equipments include the whole shoes test and shoes parts test like insole, upper and shoes materials.
The various tests includes whole shoes bending, abrasion, impact, penetration, anti-static and shoes material quality
tests like wear-resistance, heat-insulation, water-proof and so on.
Battery Testing Equipment
Battery Testing Equipments are mainly the safety performance tester including the battery crush tester, impact tester,
penetration tester, drop tester, projectile tester, low pressure tester, electromagnetic vibrator and so on.
Environmental Test Chamber
Environmental Test Chamber is mainly used for the climate simulation test for various materials. We can provide
constant temperature and humidity test chamber, salt spray test chamber, UV test chamber, aging test chamber, high
temperature ashing furnace, high precision drying oven and so on.
Paper Packaging Testing Equipment
Paper Packaging Testing Equipments are designed for the packaging quality test like compression resistance, ring crush
compression resistance, bursting strength, penetration strength, transportation simulation vibration and drop.
Helmet Testing Equipment
Helmet Testing Equipments are designed for the safety test of the helmet for its resistance to impact, static, high
temperature, UV light, electricity, low-temperature water and fire.
Luggage Testing Equipment
Luggage Testing Equipment is widely used for the fatigue and abrasion test of the luggage. The tests include the
walking-simulation abrasion test, shock impact test, pull rod fatigue test, roller test and so on.
Mobile Phone Testing Equipment
Mobile Phone Testing Equipments include tester for the test of drop, flexural performance, electromagnetic vibration,
button life, flip service life, slide service life, touch screen click service life, abrasive resistance to alcohol ,torsion and
hardness-resistance.
Chair Testing Equipment
The chair Testing Equipment is designed for the stability and safety test of the office chair. We can provide chair
durability tester, compression tester, impact tester, rotation life tester and so on.

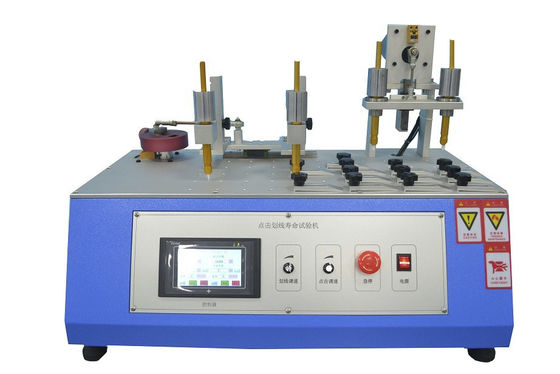

AC220V Double Head Click Scribing Life Testing Machine and phone tester 1AC220V Double Head Click Scribing Life Testing Machine and phone tester 2
