Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine

Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: CE
Model Number: GX-600

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Vibration Testing Machine Powder: 2.2kw
High Light:

2.2KW Vibration Testing Machine

,

Precision 0.1Hz Vibration Testing Machine

,

2.2KW Vibration Shaker Machine

Product Description

Top Testing Machine Acceleration Electromagnetic Transportation Simulate Vibration Testing Machine


2. Description

The Electromagnetic vibration tester is used to test the safety capability of battery when being vibrated
on transportation.
Simulating vibration created on transportation and traveling influence on the battery,
Whether the battery will short circuit and cause explosion or fire when be vibrated.


4. Specifications

Function

Sine wave (half wave/full wave), frequency modulation, frequency sweep, programmable, frequency multiplication, logarithm, amplitude, maximum acceleration, time control, 485 communication interface, simple
acceleration, simple fixed amplitude;

Vibration table size

L500×W500×H1 0mm and L500×W500×H200mm, there are 25 10mm
threaded holes on the top and 4 about 7cm hooks on each of the four sides.

Direction of vibration Vertical (Y) axis, horizontal (X) (Z) axis
Maximum test load 0~100Kg/maximum excitation force in the range of 2000Kgf
FM function

Any adjustment of 1 ~ 600Hz, in the frequency range, any frequency can not exceed one of the two items (maximum acceleration <20G and maximum
amplitude <5mm)

Weep function

Arbitrarily adjust 1~600Hz, (upper band/lower band/time range) can be set
to true standard back and forth frequency sweep

Programmable function

Arbitrarily adjust 1~600Hz, each segment of 1~15 can be set arbitrarily
(frequency/time) to cycle

Multiplier function

Arbitrarily adjust 1 to 600 Hz, 1 to 15 segments are multiplied by 1) low to
high frequency; 2) high to low frequency; 3) low to high and then low frequency / recyclable

Logarithmic function

1) Down to up frequency; 2) Up to down frequency; 3) Down to up to down
frequency - 3 modes logarithm/recyclable

Vibration machine power 2.2kw
Amplitude

Arbitrarily adjust the amplitude from 0 to 5mm, no scale, no display, no
adjustment, by frequency calculation

Maximum acceleration

Arbitrarily adjust the maximum acceleration 0~20G (200m/s2), no scale, no
display, no adjustment, by frequency calculation

Vibration waveform

Sine wave (half wave / full wave) / maximum sine wave excitation force
2000kgf

Time control Can be set at any time (unit: second)





Power supply 220V±20%
Precision Frequency can be displayed to 0.01Hz, precision 0.1Hz
Cooling method Natural air cooling

Applicable temperature and
humidity range

Temperature: -10 ° C ~ +60 ° / humidity: 10% ~ 90% /
Noise ≤ 60 dB

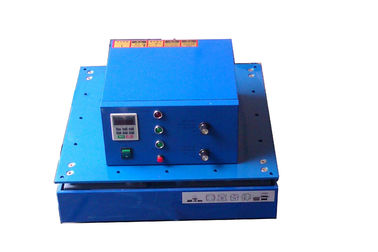

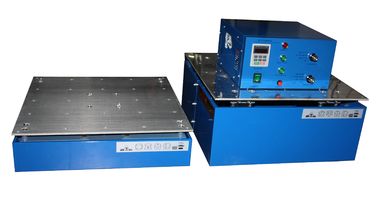

5. Product Picture

Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 0



Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 1
Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 2
Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 3
Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 4
Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 5
Precision 0.1Hz 2.2KW Electromagnetic Vibration Testing Machine 6
