Double Drum Drop Test Machine GB/T2423.8 For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-5618 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Drive Mode: | Rotation Of Drum By Motor (5 RPM) | Fall Height: | One For Each Of 500/1000mm, And Two Stations Work At The Same Time |
|---|---|---|---|
| Range Of Fall Height: | 500/1000 ㎜ | Down The Beat: | 5-15 Times/min |
| The Counter: | LCD LCD Display, Adjustable 1-999999 Times | Overall Dimensions: | 1200㎜*1500㎜*1200㎜ |
| High Light: | Drop Test Machine GB/T2423.8,Double Drum Drop Test Machine,Double Drum Mobile Phone Testing Equipment |
||
Product Description

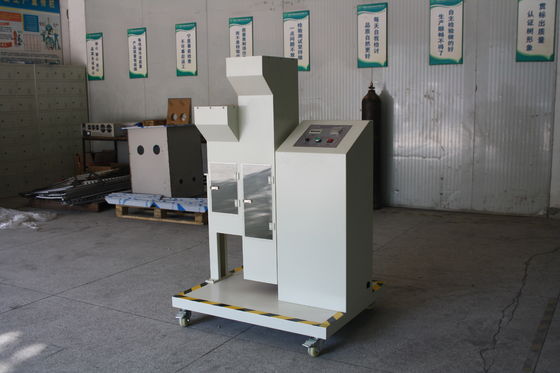

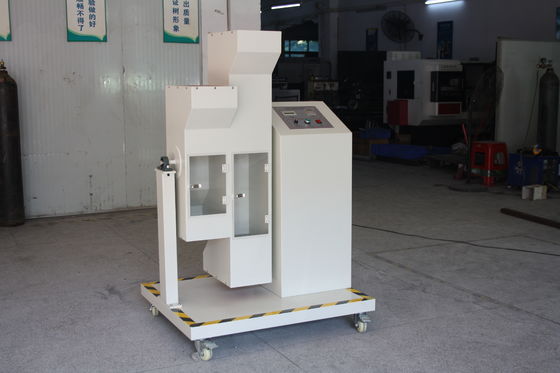

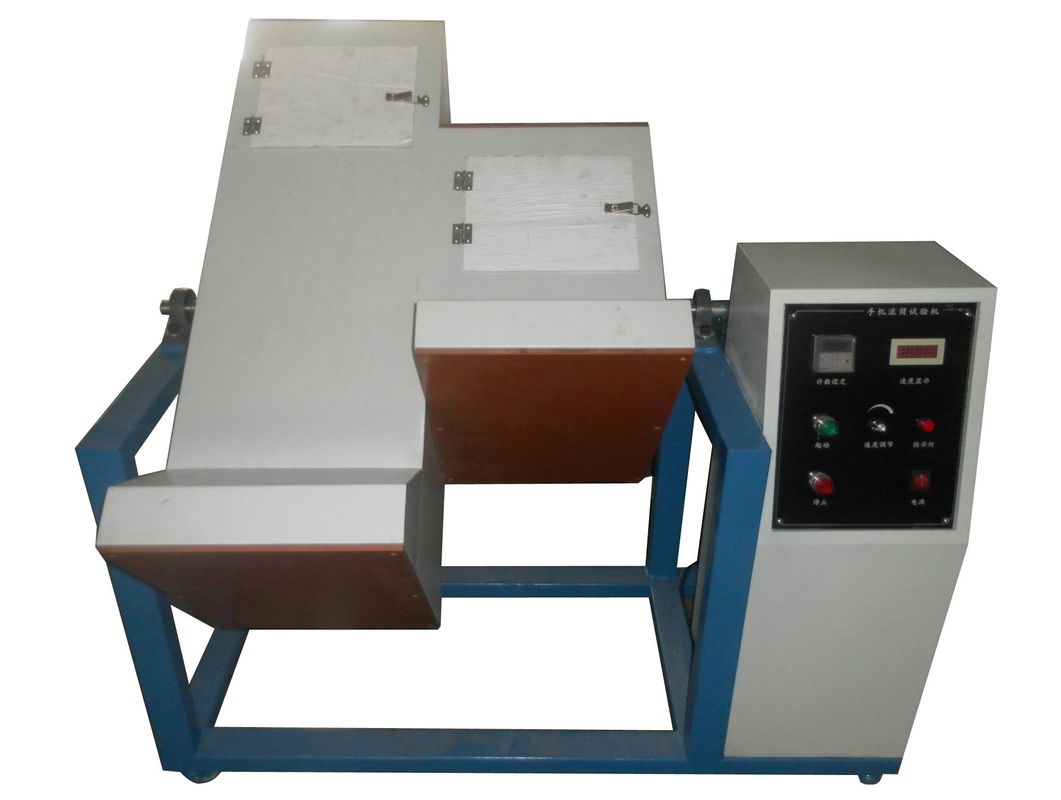

Double Drum Drop Test Machine For Mobile Phone drum type drop tester of phone tester
Mobile phone drum drop testing machine is suitable for battery, mobile phone, PDA, electronic dictionary, CD/MP3 (or other small electronic products) test. It is specially designed for testing the durability of its enclosure, the resistance of its internal structure to (heavy) falls and its adaptability to withstand repeated free falls.
1. Product Name: Drum drop testing machine for mobile phone (double drum)
2. Product Model: GX-5618
3. Conform to the standard: IEC60068-2-32,GB/T2423.8
4. Technical Parameter:
| Drive mode | Rotation of drum by motor (5 RPM) |
| Fall height | One for each of 500/1000mm, and two stations work at the same time |
| Structural advantages | Drum structure to ensure the mobile phone random drop, avoid non - standard friction and collision movement |
| Number of stations | Binocular |
| Operation mode | Push-button operation |
| Action Executive Element | Reducer motor (optional speed regulating motor) |
| Range of fall height | 500/1000 ㎜ |
| Down the beat | 5-15 times/min |
| The counter | LCD LCD display, adjustable 1-999999 times |
| The voltage | 1∮,220VAC±10%,50Hz |
| Power | 300W (including motor) |
| Overall dimensions | 1200㎜*1500㎜*1200㎜ |
| Weight | 100kg |
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
Want to Know more details about this product
