220V 3A Double Drum Drop Testing Machine 15 Times/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-5618 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Drop Testing Machine | Structure: | Double Drum |
|---|---|---|---|
| High Light: | Double Drum Drop Testing Machine,220V Drop Testing Machine,Double Drum Drop Testing Equipment |
||
Product Description

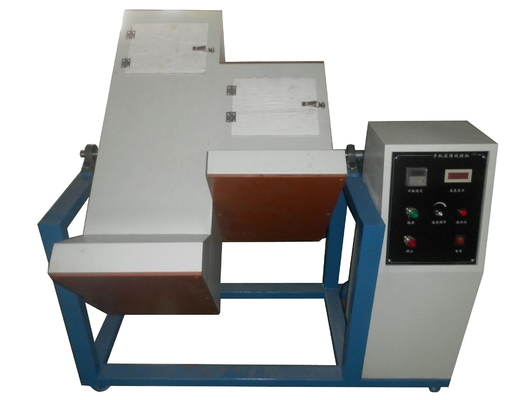

220V 3A Double Drum Drop Testing Machine 15 Times/Min
This machine is specially used for testing the durability of the shell of small electronic products, the performance of the internal structure to resist (heavy) fall and the adaptability to withstand repeated free fall.
1. Product Name:Single drum drop testing machine
2. Product Model:GX-5618
3. Test principle:
Simulate the user in the process of use, mobile phone and other small objects free falling action test.
Put the measured object into the drum manually → close the transparent cover and protective device → motor drives the drum to rotate counterclockwise → drop twice in one rotation.
4. Technical Parameter:
| Drive way | By the motor to realize the drum rotation |
| Drop height | 1000mm |
| Structure advantages | Drum structure to ensure the mobile phone random drop, avoid non - standard friction and collision movement |
| Location number | Simplex bit |
| Mode of operation | Button |
| Range of fall height | 1000mm |
| Drop speed | 5-15 times/min |
| Counter | LED, 6 bit counter |
| Power | 300W |
| Use the power supply | 220V, 3A |
| Overall dimensions | 700㎜*1200㎜*1200㎜ |
| The weight of the | 60kg |
