ISO 5423 Shoe Vamp Upper Leather Material Flexing Tester ISO 20344

ISO 5423 Shoe Vamp Upper Leather Material Flexing Tester ISO 20344

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001
Model Number: GX-5036

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

High Light:

leather testing machine

,

shoe testing machine

,

Shoe Vamp Upper Leather Flexing Tester

Product Description

ISO 5423 Shoe Vamp Upper Leather Material Flexing Tester ISO 20344





Description:

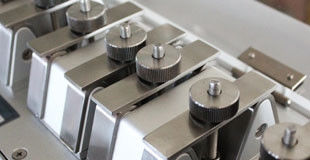

This equipment simulates the squeeze and stretch bending of the upper leather during walking, installs the upper leather on a special grips, and continues the rapid bending movement to observe whether the sample is damaged or stops the test until the specified number of times



Test Standard: ISO 5423 ISO 4643 EN ISO 20344 AS/NZS 2210.2 GB/T 20991 GB/T20265 EN ISO 22288 SATRA TM25



Specifications:



Number of Grips 12pcs
Specimen size 64mmX64mm
V shape angle (40±1)°
The end of V-shaped clamp radius of curvature (6.4±0.5)mm
Clamps opened distance (28.5±2.5)mm
Clamps closed distance (9.5±1.0)mm
Moving clamps travel length (19±1.5)mm
Movement speed(frequency) (300±30)cpm
Counter LCD 999,999
Dimension 55cmX35cmX30cm
Weight 64kg
Power 1 phase, AC 220V or customer specify
