ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer

ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001
Model Number: GX-5071-A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Capability(Max Force): 1000N Specimen Fixed Central Circular Free Area (aperture Diameter): Φ 25mm
Ball Size (diameter): Φ6.25mm Test Piece Size (diameter): 44.5mm
Test Speed: 12mm/min Elongation Scale: 0~25mm
Elongation Resolution: 0.01mm
High Light:

material testing equipment

,

leather testing machine

Product Description

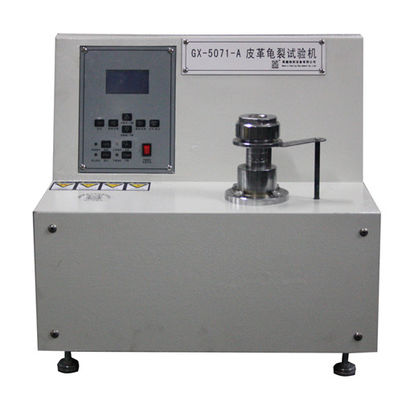

ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer


1. Description


Leather Crack Testing Machine is tested the anti-cracking index in the thin leather and upper leather.First fixed specimen’periphery by this device,and then make the ball rise up from the leather’s inside by speed about 12mm per minute,When the leather suffered the strength of 800N, the value of rising hight is the measured value of crack.

2. Specifications

Model  GX-5071-A  leather crack tester     Leather Lastometer
Force accuracy 0.1N
Scale range 0~25mm
Distinguish(height) 0.01mm
Input power 80W
Test speed 12±2mm/min
Ball Diameter

Φ6.25mm

Specimen Diameter Φ44.5mm
Weight 40kg(appr)
Power supply AC220V,50HZ


ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 0ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 1



ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 2
ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 3
ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 4
ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 5
ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 6
ISO17693 Ball Burst Leather Crack Testing Machine Tester ISO3379 Leather Lastometer 7
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
