UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine

UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine

Product Details:

Place of Origin: Guangdong China
Brand Name: GAOXIN
Certification: ISO 2008
Model Number: GX-6053

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Function: Burning Test For Battery Burner: Bunsen Burner With The Inner Diameter Of 9.5mm And Length Of 100mm
Gas: Liquefied Petroleum Gas Or Methane Burn Time: 0~ 999.9±0.1s
Round Hole Diameter: 102mm Volume: 750 X 750 X 1000 Mm
High Light:

battery test equipment

,

battery testing machine

Product Description

UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine





Technical Specifications:



Burner

Bunsen burner with the inner diameter of 9.5mm and length of 100mm

Gas

Liquefied petroleum gas or methane

Burn time

0~ 999.9±0.1s

Round hole diameter

102mm

Control method

Automatic ignition

Test bar diameter

1/4″x  14″

Test cover

Aluminum,Width of 24″(610mm),Octagon,

Test cover height

12″(305mm)

Volume

750 x 750 x 1000 mm

Accessories

Burner and racks, test table, the standard metal net, standard metal mesh



Test Method:



Each test sample cell or battery is to be placed on a screen that covers a 102 mm (4 inch) diameter hole in the center of a platform table. The screen is to be constructed of steel wire mesh having 20 openings per inch (25.4 mm) and a wire diameter of 0.43 mm (0.017 inch).The screen is to be mounted 38 mm (1-1/2 inch) above a burner. The sample is to be heated and shall remain on the screen until it explodes or the cell or battery has ignited and burned out.





Corrosponding Standards:



SJ/T11169-1998(eqv UL 1642:1995),SJ/T11170-1998(eqv UL 2054:1997),UL 1642[13] ,GB8897.4—2002  6.3.2.9,IEC60086-4:2000



Pictures:

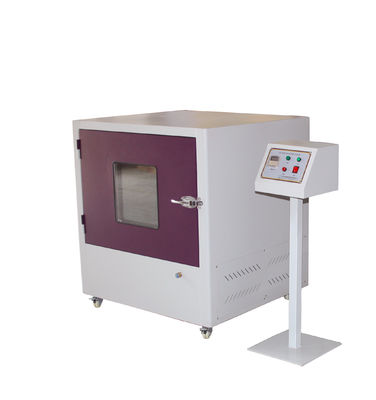

UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 0

UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 1
UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 2
UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 3
UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 4
UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 5
UL 1642 Remote Control UN 38.3 Battery Lab Equipment Burning Projectile Battery Testing Machine 6
