Programmable Climate Test Walk In Environmental Chamber Test Material Performance
1. Equipment summary:
Walk-In Environmental Stability Chamber is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.
2. Features:
1, large walk-in constant temperature and humidity testing machine has a very wide range of controlling the temperature and humidity that can fulfill user’s needs. It is stable, balanced heating and humidification performance, , it also can be high accuracy and high stability for temperature and humidity control performance,
2, large walk-in constant temperature and humidity testing machine is equipped with the high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equiped with temperature and humidity records.
3, Refrigeration circuit of large walk-in constant temperature and humidity testing machine automatically
select o operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
4, Door of large walk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.
5, large walk-in constant temperature and humidity test machine is equipped with advanced security,
protective device leak circuit breakers, over-temperature protective device, lack phase protective
devices and lack water protector.
3. corresponding standard :
GB11158 Technical conditions for high-temperature testing room
GB10589-89 Technical conditions for low-temperature testing room
GB/T10586-89 technical conditions for humidity testing room
GB/T2423.1-2001 testing methods for low-temperature
GB/T2423.2-2001 testing methods for high-temperature
GB/T2423.3-93 technical conditions for humidity testing room
GB/T2423.4-93 testing method for alternating hot and humid
IEC60068-2-1.1990 testing methods for low-temperature
4 Technical Parameter
| Madol | GX-3000-L Walk in environmental condition test machine | |
| Size (cm) | According to customer specified size for design |
| Temprature range | -65 degree ~+80 degree( A:0 degree, B:-20 degree, C:-40 degree, D:-65 degree );
capacity (low-temperature:A~D) option |
| Humidity range | 20%~95%R.H. |
| Accuracy/uniformity | ±0.1 degree, ±0.1%R.H. / ±1.5 degree,±5.0%R.H. |
| Accuracy/volatility | ±1.0 degree, ±2.0%R.H./±0.5 degree, ±3.0%R.H. |
| Cooling time | About 4.0/minute |
| Inside material | stainless steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling sytem | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| accessories | recorder(option), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| controller | Korea TEMI or Japan OYO brand option |
| compressor | France's Tecumseh Brand |
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |

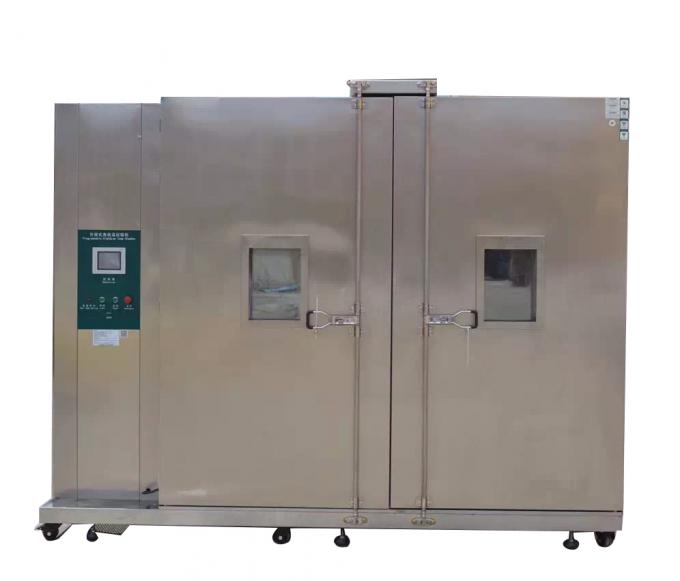

5. Product picture:
6. Company introduction:
Gaoxin Testing Equipment is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing center of China-Dongguan City where is close to Guangzhou city and Hong Kong.
Our advantages:
(1) SpSpecialtyn testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service
