Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester

Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001
Model Number: GX-5067

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 20 working days
Payment Terms: FOB Shenzhen, T/T
Supply Ability: 10 set/batch
Get Best Price Contact Now

Detail Information

Material: Stainless Steel Function: Battery Crush Test
Force Range: 0-20 Kn Driver: Hydraulic
Crush Space: 300 × 300× 200mm , 1/3 Teflon Tape(resistance To High Temperature And Corrosion) Stroke: 0~300MM
Structure: Double Visual Explosion Proof Glass,Exhaust Fan And Duct In The Back Power: 380V, 50HZ, 10A
Weight: 230KG
High Light:

battery testing instruments

,

battery testing machine

Product Description

Hydraulic PLC Integrated Control Battery And Cell 18650 Lab Tester Battery Crush Test Equipment

Battery Crush Test Equipment

Model: GX-5067

Test Requirements: Severe crushing of a cell shall not cause fire or explosion


Test standard:

UN38.3, IEC62133, SAE-J2464
SJ/T11169-1998(equal to UL 1642:1995),SJ/T11170-1998(equal to UL2054:1997),UL 1642[13],GB8897.4—2002, IEC60086-4:2000

2.Technical Parameter:


Driver

Hydraulic

Control Method PLC (7" touch screen)

Force range

13KN ± 0.78KN(Maximum of 20KN)

Force accuracy

1N; resolution of 1/10000

Crush space

300 × 300× 300mm , 1/3 Teflon tape(resistance to high temperature and corrosion)

Stroke

0-300MM

Structure

All in one structure, Upper is test zone and controller, base is load-bearing and storage
Double visual explosion proof glass,Exhaust fan and duct in the back

Door

Automatic opened or closed
Power cutted off automaticlly when the door opened
Siliding door and window

Crush Speed 0.01~20mm/s
Crush Plate Dia.15cm or 20cm circle plate
Pressure relief vent Athe back of test chamber, the pressure relief venting opened automaticlly when the pressure is too large or battery explosion
Communication interface USB, the data can be ouput

Delay function

0~9999(Arbitrary set)

Material

Interior box:SUS304# stainless steel,
Outward box:A3 Steel plate with paint ,4 universal wheels

Power

380V, 50HZ, 10A

Weight

230KG

Volume of test box

750*600*1780MM(W*D*H)

Volume of controller box

400*400*1150MM

Optional

Video monitoring system, Temperature, Voltage acquisition system, Fire extinguishing system


3.Pictures

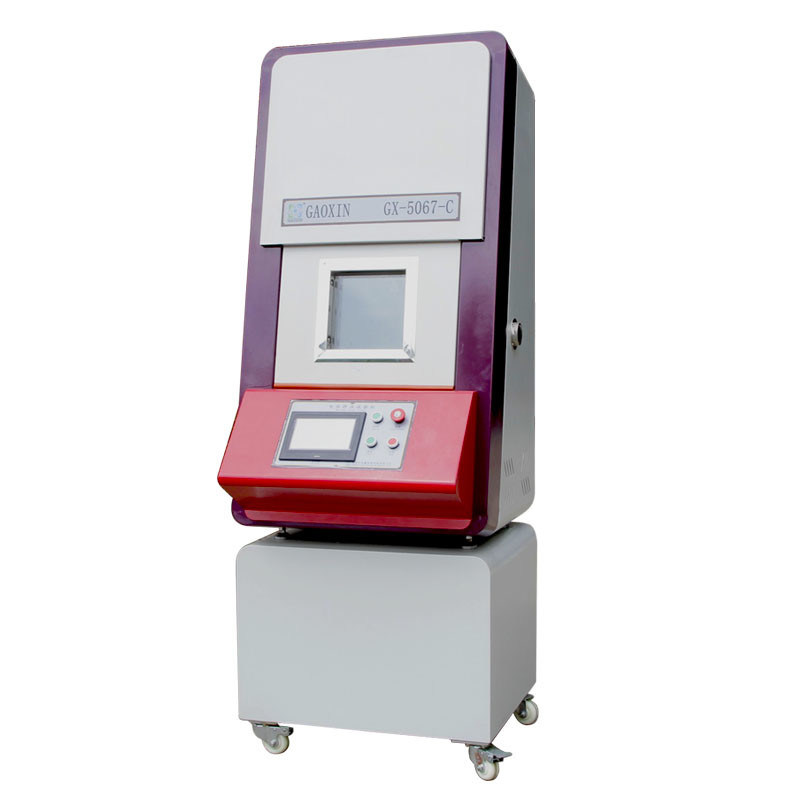

Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 0






Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 1
Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 2
Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 3
Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 4
Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 5
Battery Crush Test Equipment Hydraulic PLC Integrated Control Battery Lab Tester 6
