Multilayer Lithium Battery Test Chamber 300x300x200mm
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Non-fumigation wooden box|
|Delivery Time:||15-20 working days|
|Payment Terms:||FOB Shenzhen, T/T|
|Supply Ability:||50 sets per month|
|Function:||Explosion Proof Tank||Each Testing Tank:||Customized|
|Outward Box:||A3 Steel Board||Interior Box:||SUS#201 Stainless Steel|
Multilayer Lithium Battery Test Chamber,
Lithium Battery Test Chamber 300x300x200mm,
Multilayer Lithium Battery Tester

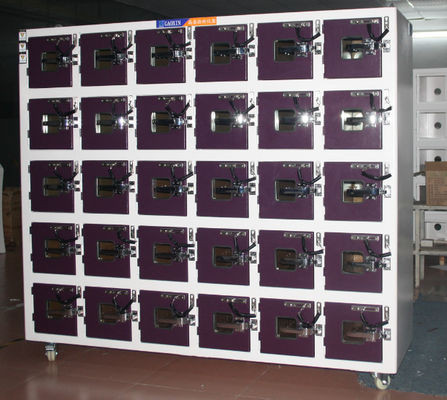

Lithium Battery Explosion Proof Test Chamber 300x300x200mm Multilayer
1. Product Name:Battery explosion proof tank for the over-charge and forced discharge
2. Product Model:GX-FB-30S
The tester is mainly used for the test of over-charge and over-discharge. Put the sample battery into the tank and connect to the charge and discharge tester to ensure the safety of the operator.
|Material||A3 sheet cold roll stell and SUS 201 stainless steel|
|Function||Explosion proof, Pressure relief opening, Exhaust, Lighting, Smoke Induction, Fire extinguishing apparatus for option|
(1) Each testing tank: customized.
★ Outward box: A3 steel board with the thickness of 3mm.
★ Interior box: SUS#201 stainless steel
(3) Single open-door with double decks and stainless steel material with the silicon sealing strip.
(4) Anti-explosion handle-lock
(5) Side convection window: Openings in the front and back or side for the heat dissipation. The stainless steel wire net can prevent the explosive substance from splashing.
(6) Put the Bakelite plate into the testing tank or paste Teflon tape for the insulation and burn resistance.
(7) Two round connecting circles in the back of the tank for connecting to testing wire.
(8) Independent panel to control the light and exhaust for each tank and the smoke detection alarm would start automatically when sensed smoke or fire.
(9) Strong exhaust fan
(10) Thermal insulation design between each tank to prevent mutual influence.
