80L Battery Testing Equipment / High And Low Constant Temperature Test Chamber

80L Battery Testing Equipment / High And Low Constant Temperature Test Chamber

80L Battery Testing Equipment / High And Low Constant Temperature Test Chamber

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Model Number: GX-3000-LT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15-25 days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Product Name: Temperature Test Chamber Test Chamber Capacity: 80L, 150L, 225L
Inspection Window: Vacuum Sealed Explosion Proof Glass Stainless Steel Shelf: One Or Two Or Three Or More Stainless Steel Shelves
Programmable: Each Programable Can Be Repeated To 9999 Times Environmental Refrigerant: R23, R404A
High Light:

battery testing instruments


battery testing machine

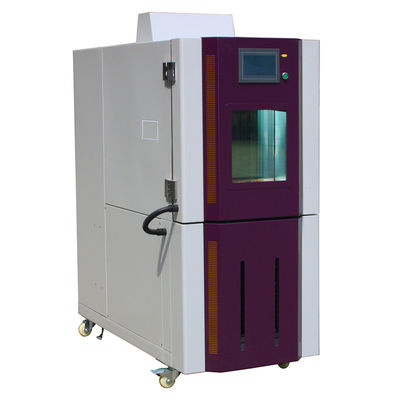

High And Low Constant Temperature Test Chamber For Battery Testing Safety Explosion Proof


This temperature test chamber specical designed for battery charge - discharge test at constant temperature condition or high temperature condition or low temperature condition. it has good temperature stability and safety protection.


Main tecnical specification of this series of temperature test chamber.


Test Chamber: 304 stainless steel and cold rolled steel sheet with foam polyurethane and fiberglass as thermal insulation


Test chamber capacity: 80L, 150L, 225L, 408L 800L, 1000L


Inspection window: Vacuum sealed explosion proof glass


Cable ports: Dia.50mm, dia. 100mm one or two ports


Pressure relief port: built at the left/right side of test chamber (for pressure release in case of battery explosion)


Stainless steel shelf: one or two or three or more stainless steel shelves


Control unit: TEMI series control system, 7 inch touch screen to set up test parameter and display temperature profile.ect....


Balance temperature humidity control method


Programmable: each programable can be repeated to 9999 times


Heating and Cooling:


Dual refrigeration compressor made from France.


Environmental Refrigerant: R23, R404A


Fin heater tube


Temperature range: -70℃~+150℃


Temperature Uniformity: ±1.5℃


Heating Rate: Optional from (4℃~10℃)


Cooling rate: Optional from (2℃~10℃)


Optional: Tricolor alarm lamp, temperature recorder, fire extinguishing system, gas detector


For any more detail information please contact with us freely.
