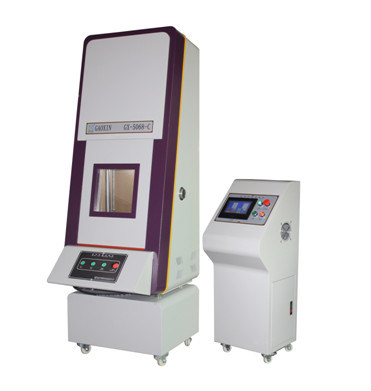

PLC Control Servo Drive Battery Crush Testing Equipment IEC 62133
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-5067-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Mode: | GX-5067-C | Product Name: | Battery Crush Tester |
|---|---|---|---|
| Pressure Range: | 0~20KN | Control Method: | PLC Touch Screen |
| Drive Method: | Servo Motor | Warranty: | 12 Months |
| High Light: | Adhesion Testing Equipment,Peel Adhesion Test Equipment |
||
Product Description
Product name: Battery Crush Test Machine
Model number: GX-5067-C
crush test method description
Cylindrical or prismatic, bag-shaped, button/coin-shaped cells or batteries are crushed between two planes which the diameter greater than 20 mm. Cruh at the first contact point at a speed of about 1.5 cm/s until one of the following three conditions occurs:
The maximum pressure reaches (13±0.78)kN;
Maximum pressure range: 0~20kN (usually 13 kN)
Pressure display accuracy: 0.01N, sensor resolution: 1/100,000;
Power display: high-precision pressure sensing and display through PLC
Control mode: PLC automatic control mode
Unit Conversion: kg, N, lb
Displacement resolution: 0.05 mm
Testing Speed: 0.01~20mm/s Adjustable
Compression space: 300*300*300mm (width * height * depth)
Machine crush stroke: 200mm
Crush Plate: Dia. 20cm or 15cm Round squeezing board
Battery Placement Platform:
Material for the stainless steel, the middle left a diameter of 20mm puncture hole, easy to puncture, place the platform just below the electrolyte collection plate, can be collected at any time during the test leakage, easy to extract the electrolyte;
Lighting Design:
The top of the test chamber is equipped with an LED explosion-proof lighting, dust, explosion-proof, fire, explosion-proof lamp shell easy to replace.
Emergency stop:
Squeeze acupuncture machine with "emergency stop" button, easy to emergency situations in the emergency treatment;
"Emergency stop" button for emergency situations, stop acupuncture testing machine all the action to prevent the occurrence of harm;
Drive system
Servo control system: the original imported servo motor with servo drive output power, through the screw drive extrusion head or needle to set the speed of the battery to the battery. Extrusion / acupuncture speed adjustable can be set.
Maximum stroke: 300mm.
Test speed: 0 ~ 1.5cm / s (adjustable)
Test force range: 0 ~ 20kN (adjustable can be obvious)
