SATRA TM 174 Rubber Testing Equipment DIN Abrasion Testing Equipment For Shoe Sole

China SATRA TM 174 Rubber Testing Equipment DIN Abrasion Testing Equipment For Shoe Sole supplier

Large Image :  SATRA TM 174 Rubber Testing Equipment DIN Abrasion Testing Equipment For Shoe Sole

Product Details:

Place of Origin: Guangdong, China
Brand Name: GAOXIN
Certification: ISO 9001:2008
Model Number: GX-5028

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negoatiation
Packaging Details: Standard Export Wooden Case
Delivery Time: 15 work days
Payment Terms: FOB Shenzhen T/T
Supply Ability: 50 per month
Contact Now
Detailed Product Description
Material: Stainless Steel Function: Abrasion Tester For Rubber
Color: Silvery White(or Customize) Standard: DIN-53516, ISO-4649, GB/T 9867, SATRA TM174, JIS-K6264.
Volume: 70×30×30cm Weight: 61kg

SATRA TM 174 Lab Equipment DIN Abrasion Testing Equipment for Shoe Sole and Rubber


Quick Details:

Name

DIN abrasive tester

Usage

test the friction of surface of rubber , tire, conveyor belt, shoe sole, synthetic leather

Power

1∮,AC220V,3A

Weight

61kg

Volume

70×30×30cm


Description:

The tester is for the measurement of abrasion resistance or rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/ frictional wear in actual service. The abrasion resistance is measured by moving a test piece across the surface of an abrasive sheet mounted to a revolving drum, and is expressed as volume loss in mm3 or abrasion resistance index in percent. For volume loss, a smaller number indicates better abrasion resistance, while for the abrasion resistance index; a smaller number denotes poorer abrasion resistance.

Specifications:


Sample

Diameter of 16mm,thickness of 6~15mm

Fixture load

2.5N

Weight load

2.5N,5N

Fixture lateral moving distance

4.2mm/circle

Diameter of the cylinder

(150±0.2)mm

Length of the cylinder

460mm

Rotation speed of the cylinder

40rpm

Distance reservation

40m/20m(equals 84 circles/42 circles)

Abrasion speed

0.32m/sec

Incline angle

3°(the angle between sample support axle and the vertical plane of cylinder)

Volume

70×30×30cm

Weight

61kg

Power

1∮,AC220V,3A

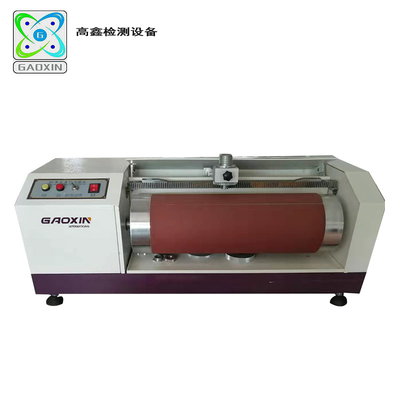

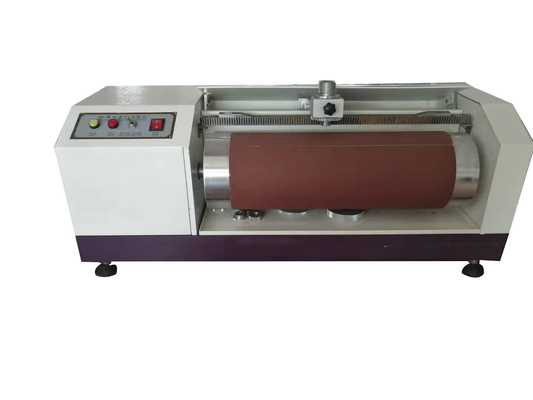

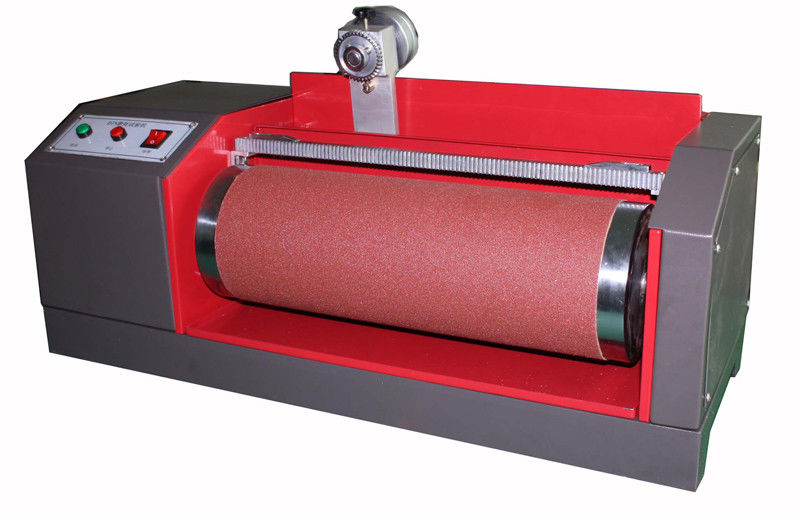

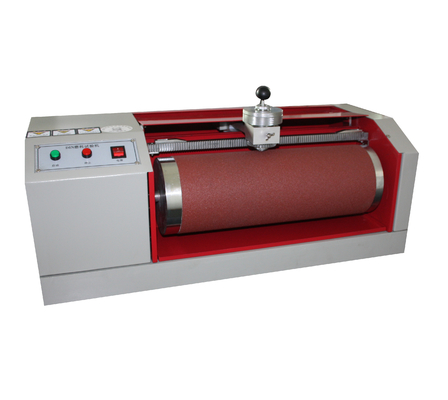

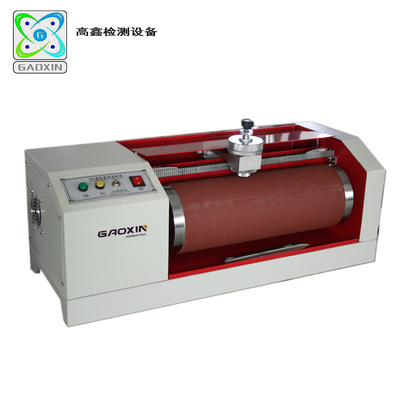

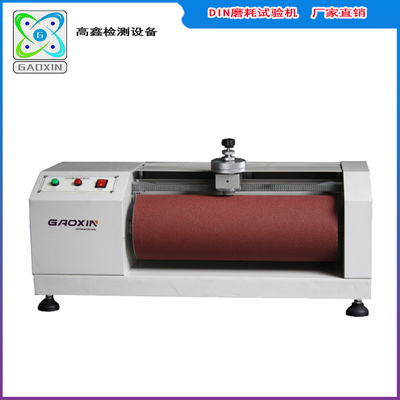

Pictures:
Synthetic Leather Rubber Testing Equipment of DIN Abrasive Tester , Abrasion Resistance
Synthetic Leather Rubber Testing Equipment of DIN Abrasive Tester , Abrasion Resistance


For the operation of the Rubber abrasion test equipment video, please click the link in youtube.

Company introduction:

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.
Our advantages:
(1) Speciality in testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service

Our products mainly divided into:

1. environment simulation test chamber
2. battery safety testing machine
3. Footwear and leather testers;
4, rubber and plastic tester
5, tensile tester
6. paper and packaging tester
7. cable tester

After sale service:

1. operation manual and video, till user can operate the testing machine masterly.
2. one year warranty
3. free operation training.
4. professional engineer to solve any problems or confusion about the test equipment.

SATRA TM 174 Rubber Testing Equipment DIN Abrasion Testing Equipment For Shoe SoleSATRA TM 174 Rubber Testing Equipment DIN Abrasion Testing Equipment For Shoe Sole
