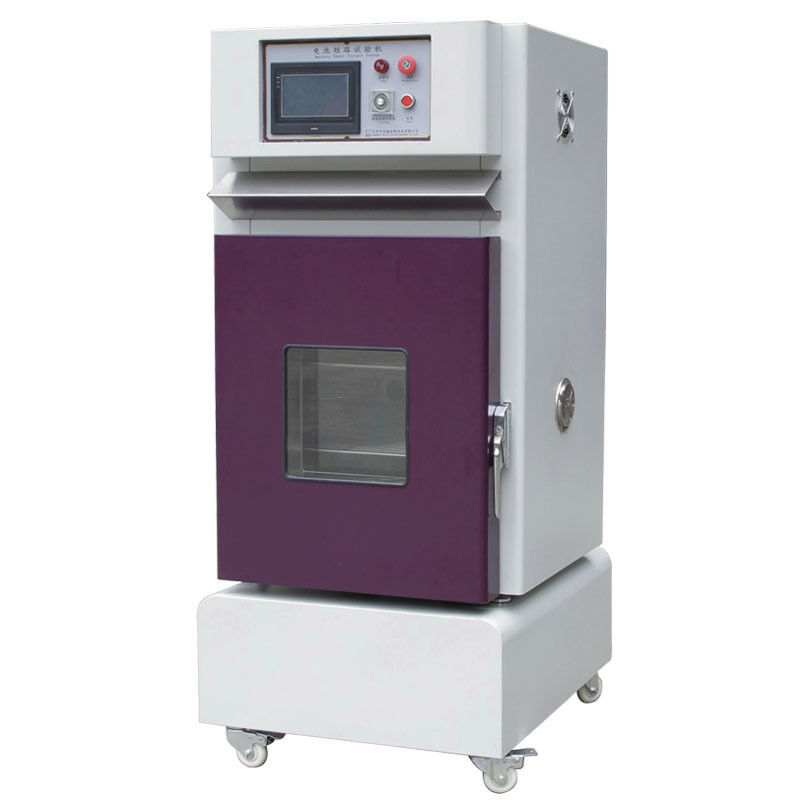

Battery External Short Circuit Testing Equipment With Temperature Current Voltage Recorder

Battery External Short Circuit Testing Equipment With Temperature Current Voltage Recorder

Battery External Short Circuit Testing Equipment With Temperature Current Voltage Recorder

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Model Number: GX-6055

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 30 set per month
Contact Now
Detailed Product Description
Current: 1000A Voltage: 100V
Test Chamber Temperature Range: RT+10℃~150 ℃ Control And Dispaly: PLC 7inch Touch Screen + Wireless Remote Control
Monitoring: Current 2 Channels, Voltage 2channels, Temperature 4channels Loop Resistance: ≤5mΩ OR ≤80±20 MΩ OR ≤20mΩ

Main Technical parameter of Short circuit test equipment.



Battery External Short Circuit Testing Equipment With Temperature Current Voltage Recorder



 Working voltage AC 220V 50Hz;
Impact voltage AC 1kv/1.2-50μs <peak value> 1min
Operation characteristics

Cold state pull-in voltage ≯66%Us

Cold state releasing voltage ≯30%Us,≮5%Us

Short circuit mode Pneumatic suction
Maximum measurable battery voltage 100V~1000V
DC response time ≤5μs
Max. circuit current 500A, 1000A, 2000A, 3000A, 5000A, 10000A
Internal resistance of device <5mΩ or 80±20 mΩ or ﹤20 mΩ
Remote control distance 7 meter
Test temperature range RT+10℃~200℃
Current, voltage, temperature acquisition channels Total 8 channels,  N x 4 expand available
Actuation time Response time / releasing time ≯30ms
Mechanical life 300,000 times
Temperature control accuracy 0.1℃
Temperature uniformity ±2℃
Temperature fluctuation ±0.5℃
Interior test chamber size 500*500*500mm, Larger chamber available
External test chamber size 1050*950*1750mm
Working environment Temperature: -10℃~100℃ humidity: 10~90%RH
Short Circuit Model

Room temperature short circuit

High temperature short circuit

Supply power AC220V±10% , 50HZ
Equipment power 2.5KW
Exhaust  Dia 100mm, located at the side of test chamber
Safety Door  located at the side of test chamber. Automaticlly opened in case of battery fire or explosion.
