YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ

YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-5611-212

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Power: 50hz / Customized,220V Product Name: Mobile Phone Test Equipment
Warranty: 1 Year Power Supply: 220V 50Hz,AC220V
Application: Electronic Components,mobile/ Cell Phone,Mobile Phone Drop Testing Machine,other Electronic Products Name: Mobile Phone QC Machine Temperature Humidity Chamber
Standard: IEC60034,BS1006D02,IEC60529 IEC60598-1,AATCC8/165 Lead Time: Within 15 Days
Supply: 300/month Frequency Range: 50Hz
High Light:

Keyboard Key Life Tester 1PH

,

Keyboard Key Life Tester 50HZ

,

YD/T 1539-2006 Cell Phone Tester 1PH

Product Description

Testing Machine 1PH 50HZ Multiple Station Keyboard Key Life Tester





The machine can test the durability of keys and other buttons and switches of notebook computers, mobile phones and palm computers.



1. Product Name: Keyboard key life testing machine


2. Product Model: GX-5611-212



3.Conform to the standard: YD/T 1539-2006



4. Technical Parameter:

Action stroke: 10mm (fixed)
Workpiece height adjustment range: 100mm
Clamping capacity of the fixture: 400×300mm
Probe installation: 350×250mm
Number of tests: 999999×10
Test speed: 60-300rpm
Load range: 50-450g
robe height adjustment: 15mm
Number of probe heads: 15 standard (can be extended to 120 with additional cost)
Minimum interval between two probes: 10mm in the X direction and 20mm in the Y direction
Appearance size: 520×420×980mm
Weight: 110kg
Voltage: 1∮, 220VAC±10%, 50Hz,

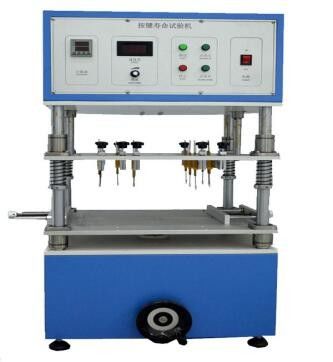

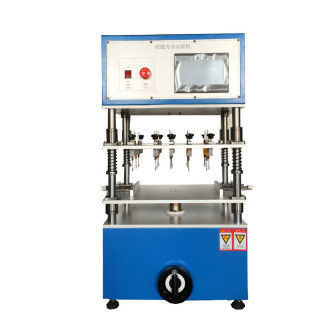

5. Picture

YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 0



YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 1
YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 2
YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 3
YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 4
YD/T 1539-2006 Cell Phone Keyboard Key Life Tester 1PH 50HZ 5
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
