    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester

    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: ISO 9001:2008
    Model Number: GX-5028

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15-25 working days
    Payment Terms: FOB Shenzhen
    Supply Ability: 50 sets per month
    Get Best Price Contact Now

    Detail Information

    Material: Stainless Steel Function: Abrasion Tester For Rubber
    Color: Silvery White(or Customize) Standard: DIN-53516, ISO-4649, GB/T 9867, SATRA TM174, JIS-K6264.
    Volume: 70×30×30cm Weight: 61kg
    High Light:

    rubber test equipment

    ,

    rubber testing machine

    Product Description

    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester

    Synthetic Leather Rubber Testing Equipment of DIN Abrasive Tester , Abrasion Resistance





    1.Quick Details



    Name

    DIN abrasive tester

    Usage

    test the friction of surface of rubber , tire, conveyor belt, shoe sole, synthetic leather

    Power

    1∮,AC220V,3A

    Weight

    61kg

    Volume

    70×30×30cm





    2. Description



    The tester is for the measurement of abrasion resistance or rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/ frictional wear in actual service. The abrasion resistance is measured by moving a test piece across the surface of an abrasive sheet mounted to a revolving drum, and is expressed as volume loss in mm3 or abrasion resistance index in percent. For volume loss, a smaller number indicates better abrasion resistance, while for the abrasion resistance index; a smaller number denotes poorer abrasion resistance.



    3. Specifications

    Sample

    Diameter of 16mm,thickness of 6~15mm

    Fixture load

    2.5N

    Weight load

    2.5N,5N

    Fixture lateral moving distance

    4.2mm/circle

    Diameter of the cylinder

    (150±0.2)mm

    Length of the cylinder

    460mm

    Rotation speed of the cylinder

    40rpm

    Distance reservation

    40m/20m(equals 84 circles/42 circles)

    Abrasion speed

    0.32m/sec

    Incline angle

    3°(the angle between sample support axle and the vertical plane of cylinder)

    Volume

    70×30×30cm

    Weight

    61kg

    Power

    1∮,AC220V,3A



    4.Pictures

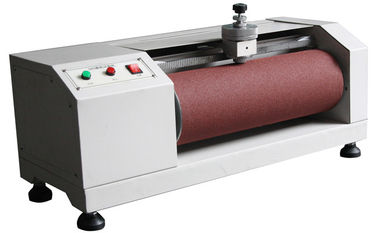

    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester ,  Abrasion Resistance Tester 0

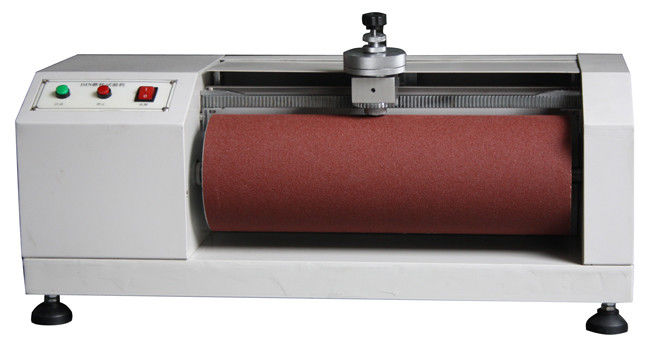

    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester ,  Abrasion Resistance Tester 1



    5.Company information



    Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

    Our advantages:

    (1) Speciality in testing equipment

    (2) Various products to choose from

    (3) Accept customization

    (4) Excellent after-sale service

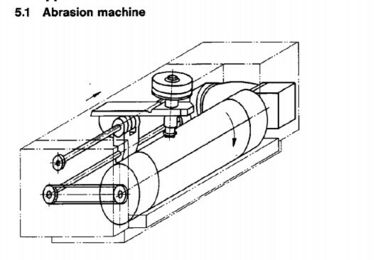

    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester ,  Abrasion Resistance Tester 2

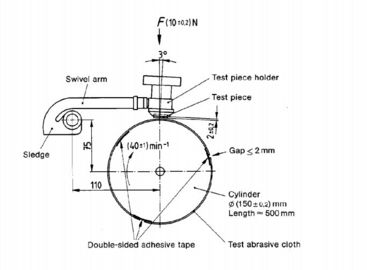

    Rubber Testing Equipment Rotary Drum DIN Abrasive Tester ,  Abrasion Resistance Tester 3
