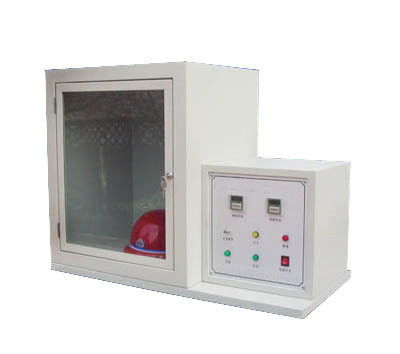

Electronic Ignition Helmet Testing Equipment For Flame Resistance Test

China Electronic Ignition Helmet Testing Equipment For Flame Resistance Test supplier
Electronic Ignition Helmet Testing Equipment For Flame Resistance Test supplier Electronic Ignition Helmet Testing Equipment For Flame Resistance Test supplier

Large Image :  Electronic Ignition Helmet Testing Equipment For Flame Resistance Test

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Model Number: GX-7006

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Friction Head Material: Stainless Steel Color: Steel Grey
Displayer: Meter Capacity: 60 Kg
Feature: Double Wing Usage: Test Flame Retardant Property Of Helmet
Applicable Object: Paper Packaging And Printing Angle: 90 Degree

Electronic Ignition Helmet Testing Equipment For Flame Resistance Test





1. Quick Details:



Alternative name

Helmet flame retardant tester

Function

Test flame resistance of helmet

Feature

Electric Drive

Weight

135kg

Volume

86×43×80cm

Test standard

EN 397 and ANSI Z89.1-2014





2. Equipment Description:



The tester is used to measuring the flame retardant property of helmet.



Test method:

  • The test will be processed in the fuming cupboard. The helmet after being tested by high-temperature shock, fixed on the staging in the state of normally wearing.
  • The side of helmet arm at the flame jet.
  • Adjust Axis of the jet is parallel with the axis of the helmet, 50mm±1mm up away from edge.
  • Adjust position of staging, make the tested area 45mm±1mm away from surface of jet.
  • Then remove staging, open gas control valve to adjust length of flame to 2mm, secure the blue fame 15mm long.
  • Move the staging on the above certain position, flame fire on the helmet and keep 10s and make power off.
  • Record burning time and possible burning through phenomenon, exact to 0.1s.



3. Main Characteristics:

  • The electronic ignition.
  • Burner automatic timing positioning.
  • The burning time 0-99.9 seconds (adjustable).
  • Flame height adjustable, with flame height flame height measurement auxiliary set foot flame height.
  • The "push-pull frame fixtures.
  • Highly sensitive combustible gas leak alarm device, such as combustible gas alarm that automatically expires.



4. Technical Parameter:



Model

GX-7006

Frame

firmly clamp helmet, adjustable

Timer

indication error ± 1%, record  burning time, accurate to 0.01s

ignition timing range 0 -999.9 seconds

Measuring device for flame height

scale high 50mm.

fuel supply devices:

pressure regulator valve, gas valve, gas tank device

box

large enough, secure not being influenced by the wind

Voltage and power

220V ± 10%, 50HZ; 100W

Inner diameter of Bunsen burner

10mm ± 0.10mm

Gas source

methane, propane, butane, liquefied petroleum gas.

Room temperature

-10 °C -30 °C.

relative humidity

≤ 85%.

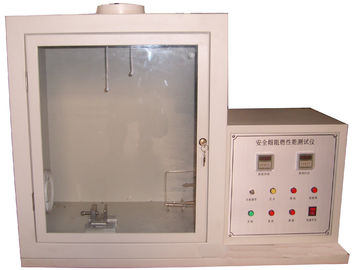

6. Picture:



Electronic Ignition Helmet Testing Equipment For Flame Resistance Test
