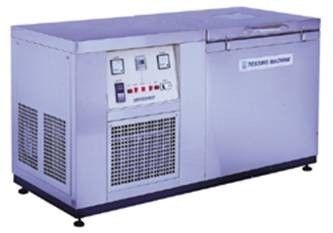

Low Temperature Cable Test Equipment For Cord Winding Crack Test
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-5616 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Silver |
|---|---|---|---|
| Type: | Horizontal Type | Structure: | Single Column |
| Fixture: | Pneumatic Structure | Usage: | Winding Cability In Low Temperature For Cables |
| Applicable Object: | Small Electronics | Falling Method: | Multi Angle (edge, Corner, Surface) |
| High Light: | cable test equipment,cable testing machine,Cord Winding Crack Test Equipment |
||
Product Description
Cable Testing Equipment For Cord Winding Crack Test In Low Temperature
1.Quick Details:
|
Alternative name |
Cord winding crack tester |
|
Function |
Cable flexibility and rolling durability in low temperature |
|
Feature |
Electric drive |
|
Weight |
135kg |
|
Volume |
86×43×80cm |
|
Test standard |
TAPPI-T803,JIS-P8134,GB2679-7 |
2.Description:
The tester is used for winding cable in low temperature and check whether the surface cracks or cracking degree.
The test is applied to check cable winding durability and flexibility in low temperature.
3.Test method:
The cable of sectional area less than 100mm2 is cooled for 1h in the test chamber, then rolled on a specific round rod in the fixed average speed;
The cable of sectional area more than 100m2 is winded at first, then cooled in the test chamber for 1 hour, in the last winded on rod in reverse direction.
Take out the specimen cable and check whether the surface cracks.
4.Technical parameters:
|
Model |
GX-4001 |
|
Cooling method |
Air cooling |
|
Cooling range |
Normal temperature to -50℃ |
|
Cooling speed |
About 60min |
|
Accuracy |
±1℃ |
|
Materials of test chamber |
SUS#304 |
|
Round rod |
4pcs, |
|
Dimension of inner box |
60×50×60cm |
|
Motor |
450W×2 |
|
Volume |
130×60×76cm |
|
Weight |
262kg |
|
Power |
1∮,AC220V,45A |
