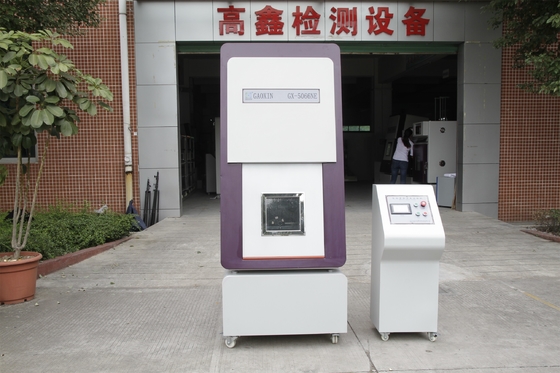

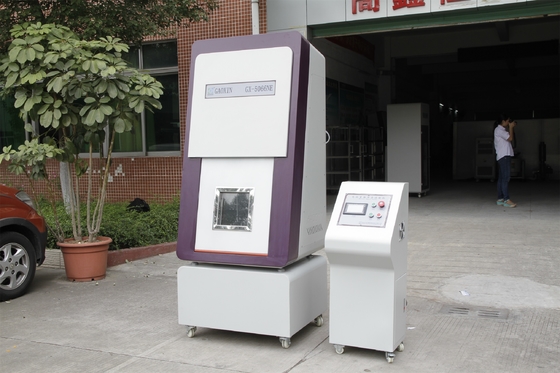

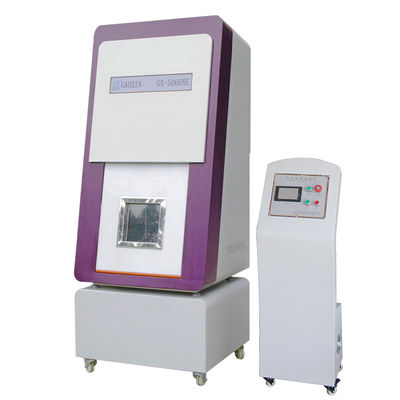

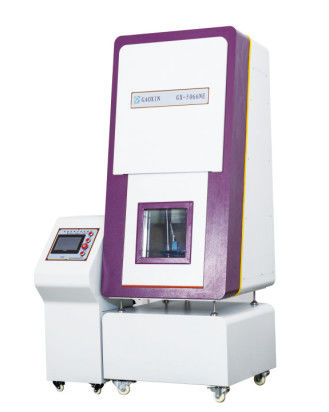

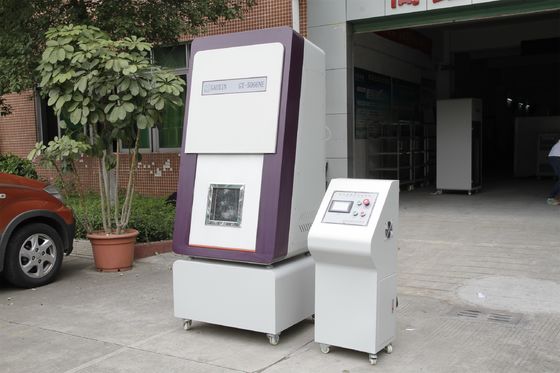

Battery Impact testing equipment UN 38.3.4.6 Free Fall Option for Lithium Battery

Battery Impact testing equipment UN 38.3.4.6 Free Fall Option for Lithium Battery

Battery Impact testing equipment UN 38.3.4.6 Free Fall Option for Lithium Battery

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5066-NE

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Drop Weight: 9.1kg Drop Height: 0~1000mm Adjustable
Horizontal Steel Rod: 15.8 Mm Dia Drop Mode: Free Fall
Max. Battery Tested Size: 300*300*100mm (L*W*H) Control Method: PLC 7" Touch Screen

Battery Impact testing equipment



GX-5066-NE



Drop weight 9.1kg and 10kg (usually 9.1kg)
Drop Height 0~1000mm adjustable (usually 610mm)
Horizontal Steel Rod

15.8 mm Dia.

Customized diameter is available upon request

Drop mode

Release the ball to a certain height and release it. The ball falls freely in the vertical direction without tilting or shaking.

Automatic return, automatic grab

Electric lift - Electric motor with worm gear reducer for raising and lowering the weight

Chamber

Inner: SUS304 stainless, thickness: 1.5mm

          Teflon tape attached at the 1/3 of box, insulated, high temperature and flame resistant, easy to clean and maintain

Outer: Cold-roll steel sheet with baking finish thickness: 1.5mm

Observation window: double layer tempered glass. size: 250*250*5mm, pasted with explosion-proof membrane and with iron gauze between the glass in case of battery explosion splash and avoid to injury operator.

Door induction switch: Automatic induction door lock, the door automatic closed when start to test, After test finished, the door opened automaticlly

Lighting : located at the top of chamber

Battery fixture Lift and release clamping mode, sample can be fixed fastly
Control system

7" touch screen set and display parameter

In the case of electrical outage, weight will be lowered and locked in position automatically

PLC remote control with wire in 8 meters. Wireless control is optional

Venting Venting port with high-quality exhaust fan is installed in back chamber which can be connected to your venting system.  duct Dia.120mm, Lenght: 100mm
Volume

820*830*2030mm (length * width * height) Testing Equipment size

400*450*1080mm (length * width * height) Controller size
Power Supply AC220V±10%, 10A 50Hz 1∮
Max. Battery tested size 300*300*100mm (L*W*H)



For more detail information please contact with us.
