PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287

PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: CE
Model Number: GX-5068

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15-20 working days
Payment Terms: FOB Shenzhen, T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Function: Nail Penetration Test Heat-resistant Steel Needle: Diameter Of 2—8 Mm
Distance Between The Needle To The Sample: 0-300 Mm Speed: 0~100 Mm/s
Test Method: Penetrate The Sample Perpendicular To The Plate Force: 150~200 KG
Display: PLC Stroke: 0-300mm
Drive: Hydraulic Or Servo
High Light:

battery test equipment

,

battery testing machine

Product Description

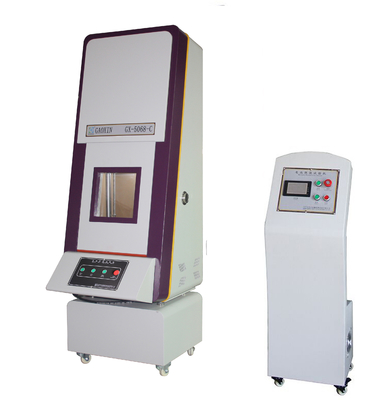

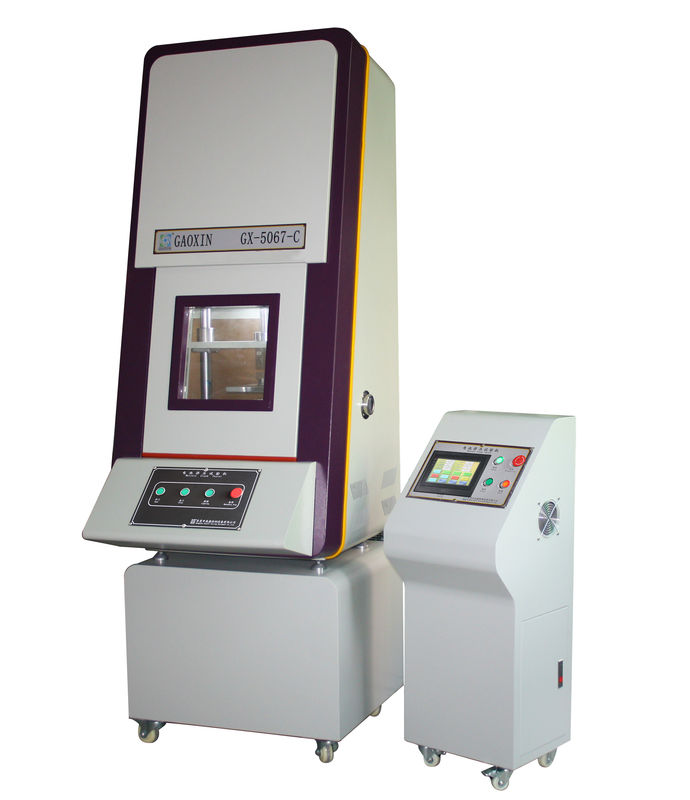

PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287

PLC Control Integrated Structure Nail Penetration Battery Puncture Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287



1.Product Name:Battery nail penetration tester



2.Product Model:GX-5068



4.Test standard: UL2580, SAND99-0497



5.Technical Parameter:



Heat-resistant steel needle

Diameter of 3—8 mm

Distance between the needle to the sample

0~200 mm

Clap distance

200 mm

Speed

0~100mm/s

Test method

Penetrate the sample perpendicular to the plate

Force

150~200 KG

Display

LED OR PLC display

Stroke

0-300mm

Drive

Air cylinder, Hydraulic, servo motor

Volume of the explosion-proof tank

450×750×550mm(W×H×D)

Material of the explosion-proof tank

Galvanized sheet with stoving varnish

Volume of the control room

300×260×170mm

Power

220V , 50HZ

Weight

About 80KG

Structure

Box-type equipment  with explosion-proof, fire prevention, anti-corrosion, easy to clean

PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 1
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 2
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 3
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 4
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 5



PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 6
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 7
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 8
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 9
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 10
PLC Control All In One Nail Penetration Battery Testing Equipment for SJ/T 11170 UL 2054 ,GB/T18287 11
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according to GB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
