200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment

China 200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment supplier
200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment supplier 200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment supplier 200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment supplier

Large Image :  200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001:2008
Model Number: GX-8002

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International strong wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 30 sets per monh
Contact Now
Detailed Product Description
Capacity: 2kN (option, Can Customize) Unit Exchange: Kgf ,lbf ,N, KN, Kpa, Mpa
Effective Measuring Range: 0.2%~100%(1grade) Maximum Stroke: 600mm(can Be Increased The Height According To Customers Requirement)
Testing Speed: 0.5~500mm/min Testing Platform Moving Device: Fast /slow Two Speeds To Control, Can Jog

200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment





1. Rubber Material Tensile Testing Equipment Introduction



    Rubber tensile testing machine  also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of rubber materials. The results of the tester are commonly used to select a material for an application, for quality control, and to predict how a material will react under other types of forces.

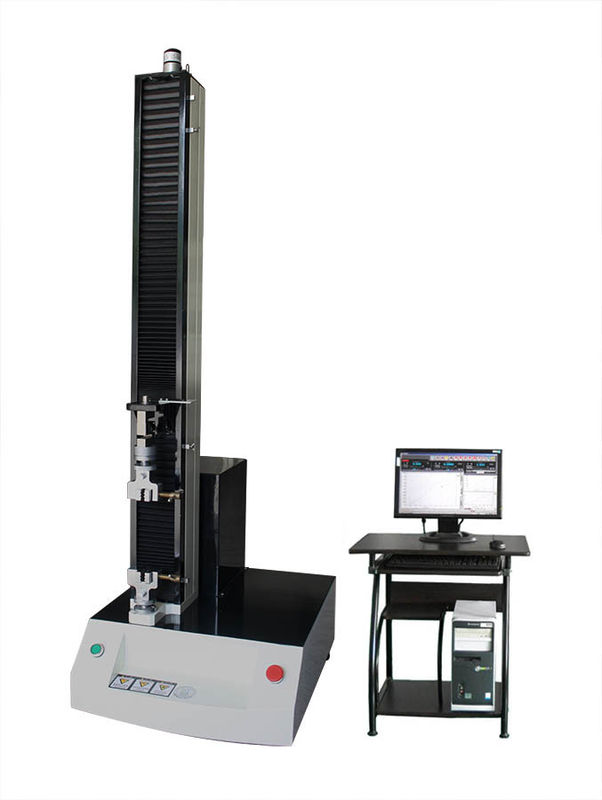

2. Rubber Material Tensile Testing Equipment Picture



200Kg - 500 Kg Capacity Laboratory Equipment Rubber Leather Universal Material Tensile Strength Testing Equipment





3. Rubber Material Tensile Testing Equipment Technical Parameter



Model

GX-8002

Max load

2kN (option, can customize)

Accurate grade

1 grade

Effective measuring range

0.2%~100%(1grade)

Measuring accuracy

the value ±1%

Tester resolution

Max load 1/100,000, constant the resolution

Load sensor

Basic configuration, sensor(max load), one

Extended configuration, can add more sensors

Effective working space

600mm(can be increased the height according to customers requirement)

Range of testing speed

0.5~500mm/min

safety

Electronic-limit protection

Testing platform moving  device

Fast /slow two speeds to control, can jog

Return back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

Overload 10%,automatic protection

fixture

A set of fixture

Machine size

400×500×1300mmm (length*width*height)

Power system

Panasonic AC Servo Motor + Driver

Power supply

220V,50HZ or specified by user

Power

0.66kW(depending on different demand of force, using different motor)

Net weight

(appr)80 kg
