150cm Height Free Fall Drop Testing Equipment For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-6052-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Highlight: | 150cm Height Drop Testing Equipment,AC220V Drop Testing Equipment ISO,150cm Height Drop Tester |
||
|---|---|---|---|
Product Description

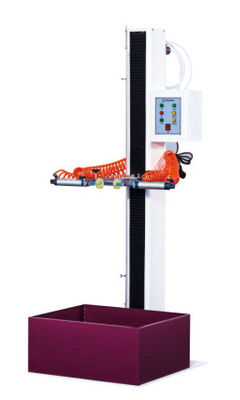

Mobile phone drop tester
The machine adopts electric lift and pneumatic drop structure, the lift positioning is accurate and fast, the drop is real and effective; Equipped with special pneumatic fixture (adjustable travel), the front end of the fixture is equipped with silicone rubber (to avoid clamping products or operators), can be a variety of specifications of mobile phone drop test.
1. Product Name: Mobile phone drop tester
2. Product Model: GX-6052-B
3. Technical Parameter:
| The maximum allowable weight of the specimen | 5kg+100g |
| Drop height | 30~150cm |
| The diameter range of the product | 10-120mm |
| Product height range | 5mm -25mm |
| Drop height scale | Steel, minimum scale 1cm |
| Clamping method | Pneumatic adsorption type, any position can drop |
| Lifting mode | Electric lift, motor drive screw up and down |
| Falling mode | Free fall |
| Drop Angle | Multiple angles (Water chestnut, Angle, surface) |
| Drop the plate quality | Marble board, cement board, hardwood board (choice of three) |
| Weight | About 100 kg |
| The power supply | AC220V,50/60Hz |
| Volume | W700*D600*H1650mm |
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
