• YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone
YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone

YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-5611-212

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Keyboard Key Tester Test Standrd: YD/T 1539-2006
High Light:

YD/T 1539 Keyboard Key Tester

,

Multiple Station Keyboard Key Tester

,

YD/T 1539 Keyboard Button Tester

Product Description

YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone

1PH 50HZ Multiple Station Keyboard Key Life Tester For Mobile Phone





The machine can test the durability of keys and other buttons and switches of notebook computers, mobile phones and palm computers.



1. Product Name: Keyboard key life testing machine


2. Product Model: GX-5611-212



3. Conform to the standard: YD/T 1539-2006



4. Technical Parameter:

Action stroke: 10mm (fixed)
Workpiece height adjustment range: 100mm
Clamping capacity of the fixture: 400×300mm
Probe installation: 350×250mm
Number of tests: 999999×10
Test speed: 60-300rpm
Load range: 50-450g
robe height adjustment: 15mm
Number of probe heads: 15 standard (can be extended to 120 with additional cost)
Minimum interval between two probes: 10mm in the X direction and 20mm in the Y direction
Appearance size: 520×420×980mm
Weight: 110kg
Voltage: 1∮, 220VAC±10%, 50Hz,

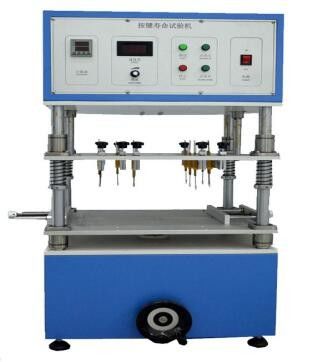

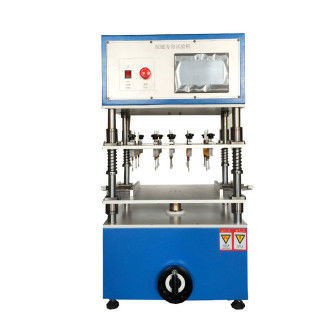

5. Picture

YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone 0

YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone 1YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone 2YD/T 1539-2006 Multiple Station Keyboard Key Tester For Mobile Phone 3
