380V 40rpm Washing Color Fastness Tester GB/T5711
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-FS17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Speed: | 40±2/rpm | Size: | 1070×490×730mm (LXWXH) |
|---|---|---|---|
| Weight: | 120KG | Large Steel Cup Volume: | 1200ml |
| Volume Of Small Steel Cup: | 550ml | Power Supply: | 380V/10A, 6.5KW |
| High Light: | Washing Color Fastness Tester,380V Color Fastness Tester,Washing Fastness Tester GB/T5711 |
||
Product Description
Washing color fastness tester Wash five times and observe the color change

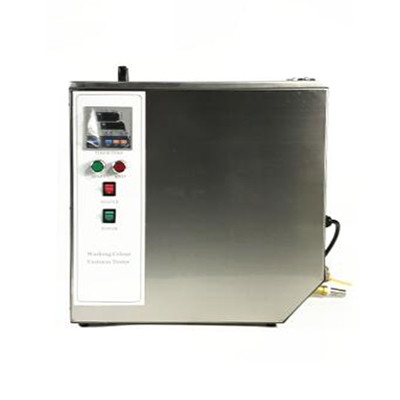

This instrument is a box-type design, composed of a box body, a control panel and a rotating system. The main shaft of the rotating system traverses the test box.
The shaft is equipped with sockets for 6 large steel cups and 6 small steel cups. During the test, a steel cup containing the sample, detergent and steel balls is installed on the spindle. After heating the water in the box to a certain temperature, the motor drives the spindle to rotate at a speed of 40 rpm to make the sample and steel balls in the cup Rub each other for a certain period of time in a washing liquid environment at a certain temperature to simulate five household washing or commercial washing in daily life, observe the color change of the sample after washing, and evaluate the color fastness level of the sample.
1. Product Name: Washing color fastness tester
2. Product Model: GX-FS17
3. Conform to the standard:
M&S C4, C4A, 5, 37, C49, P3B ISO 105
IWST7, 115,177,193,199,240,241 JIS L0884 GB/T3921
AATCC 2,3,28,61,62,86,132 BS 1006 GB/T5711
4. Technical Parameter:
Speed: 40±2/rpm
Size: 1070×490×730mm (LXWXH)
Weight: 120KG
Large steel cup volume: 1200ml
Volume of small steel cup: 550ml
Power supply: 380V/10A, 6.5KW
