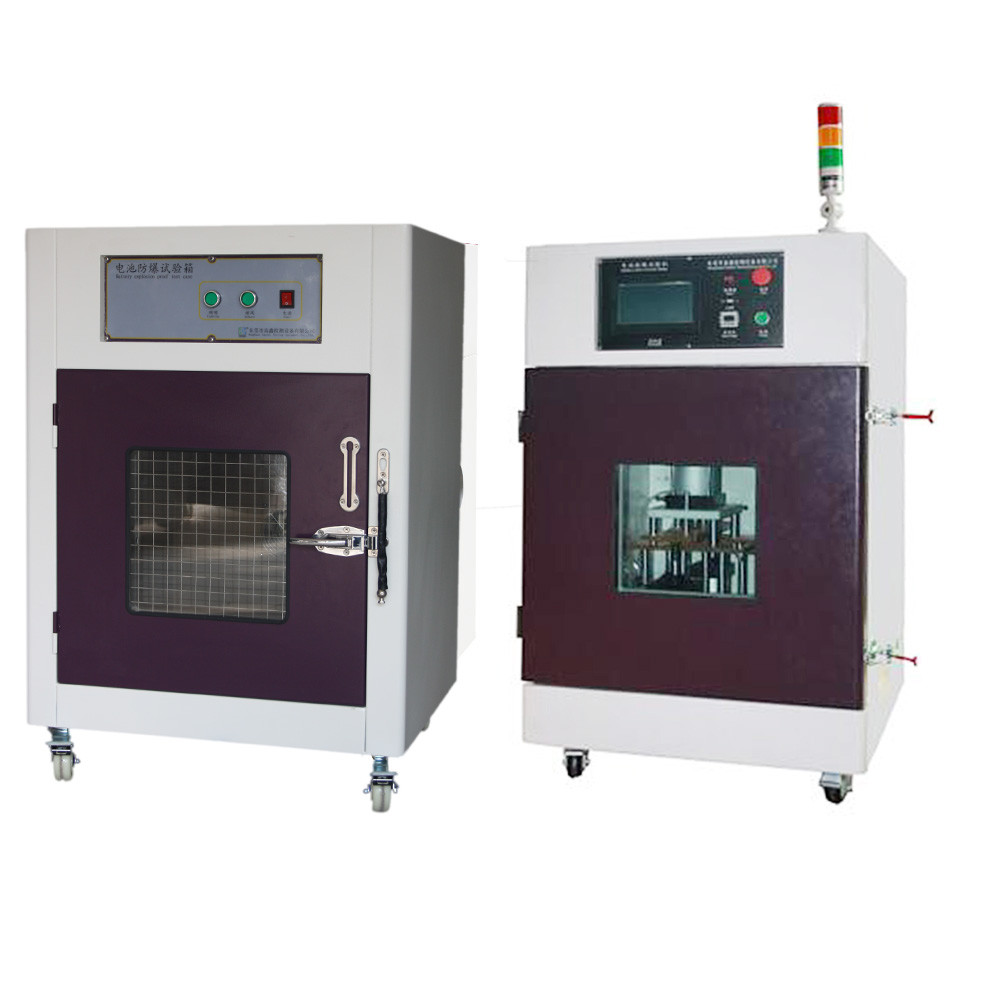

5000A 100V IEC62133 Battery External Short Circuit Tester

5000A 100V IEC62133 Battery External Short Circuit Tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-6055-5000A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Internal Resistance Of Device: 5mΩ Maximum Measurable Battery Voltage: 100V
Max. Circuit Current: 5000A Test Temperature Range: RT+10~100℃
Short Circuit Mode: Room Temperature/High Temperature Short Circuit / Short Circuit Protection Test Space: 500*500*500mm
High Light:

IEC62133 Battery External Short Circuit Tester

,

5000A Short Circuit Tester

,

100V IEC62133 Battery Testing Equipment

Product Description

5000A 100V IEC62133 Battery External Short Circuit Tester

Power Battery External Short Circuit Test Machine With 5000A 100V





Product name: Battery Short Circuit Test Machine


Model number: GX-6055-5000A


Equipment description


The remote controlled high current short circuit test machine is designed to meet the various battery short-circuit test requirements. The short circuit test machine must meet the internal resistance range according to the standard requirements. 5mΩ to obtain the maximum short-circuit current required by the test.


Technical Parameter



Working voltage AC 220V 50Hz-60Hz
Impact voltage AC 1kv/1.2-50μs <peak value> 1min
Operation characteristics

Cold state pull-in voltage ≯66%Us

Cold state releasing voltage ≯30%Us,≮5%Us
Short circuit mode Pneumatic suction
Maximum measurable battery voltage 100V
HVDC response time ≤5μs
Max. circuit current 5000A
Internal resistance of device 5mΩ
Remote control distance 7 meter
Test temperature range RT+10~100℃
Current, voltage, temperature acquisition channels 5 channels of each
Actuation time Response time / releasing time ≯30ms
Mechanical life 300,000 times
Temperature control accuracy 0.1℃
Temperature uniformity ±2℃
Temperature fluctuation ±0.5℃
Interior test chamber size 400*400*400mm
External test chamber size 950*850*1650mm
Working environment Temperature: -10℃~100℃ humidity: 10~90%RH
Short Circuit Mode

Room temperature short circuit

High temperature short circuit

Short circuit protection
Supply power AC220V , 50HZ
Equipment power 2.5KW
