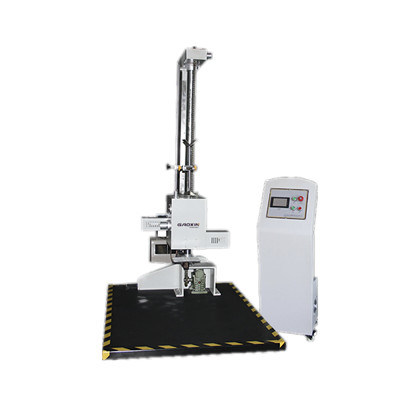

QC/T744 Single Wing Electromagnetic Drop Impact Tester For Lithium Battery

QC/T744 Single Wing Electromagnetic Drop Impact Tester For Lithium Battery

Product Details:

Place of Origin: Guangdong
Brand Name: GAOXIN
Certification: ISO
Model Number: GX-6050-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 25 working days after payment
Payment Terms: L/C, , T/T,
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: 304# Stainless Steel Type: Vertical Type
Drop Height: 300~1500mm Motor Power: 0.37KWA
High Light:

QC/T744 Drop Impact Tester

,

Electromagnetic Drop Impact Tester

,

QC/T744 Drop Impact Testing Machine

Product Description

Electric Control Power Battery Free Drop Impact Tester Drop Free Fall lithium battery Drop Impact Testing Machine





1. Quick Details


Alternative name Power Battery Drop Free Testing Machine
Function Test packaging material, battery (large power battery)'s damaged degree when free drop from certain height
Type Single wing electromagnetic type
Weight 700kg
Volume 1700mm*1200mm*2300mm
Corresponding test standard GB/T4857.5-92, ISO02448-1972E, QC/T743, QC/T744





2. Description



Usage of power battery drop free testing machine:

Check whether the outside packaging materials and internal products is damaged when drop free from certain height.

The test of drop free provides basis to improve packaging material or purchase good quality packaging.





3. Features



a. Test the packaging materials and internal products damaged degree when drop free from a certain height.

b. Easy to maintain.

c. It is suitable for large power battery, large volume and heavy products to do drop free test.





4. Specifications

Model GX-6050-A
Height of drop free 300-1500mm (or customer specified)
Max. Weight of specimen 100 (or customer specified)
Max. Dimension of specimen 1000 ×800× 1000mm
Base panel 1700 ×1200× 20mm
Height error ±10mm
Fell flat error ≦1°
Drive type Single wing electromagnetic
Display of height LED digital data display; 0.01mm
Motor capacity (KWA) 0.37
Outside dimension 1700mm*1200mm*2300mm
Net weight 700kg
Power 380V, 50/60HZ, 15A
