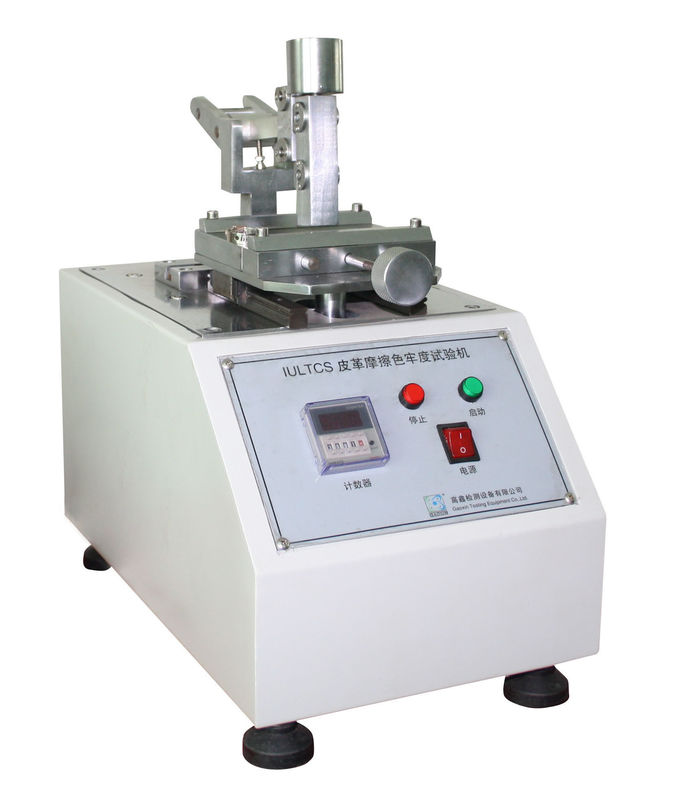

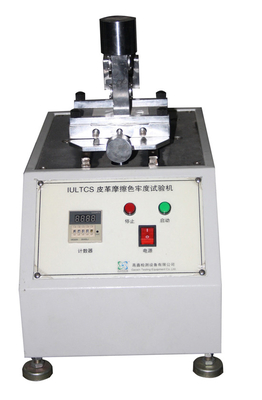

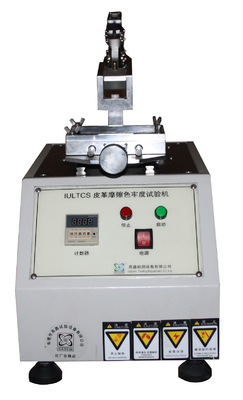

Color Fastness Rub Tester Textile Leather Testing Equipment for ISO 11640 SATRA TM 173

Color Fastness Rub Tester Textile Leather Testing Equipment for ISO 11640 SATRA TM 173

Color Fastness Rub Tester Textile Leather Testing Equipment for ISO 11640 SATRA TM 173

Product Details:

Place of Origin: Guangdong
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-5042

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: within 25 days after deposit received
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Usage: Abrasion Tester Standards: ISO11640, ISO 17700, EN344, EN 13516, SATRA TM 173, DIN 4843,QB/T 2537
Rubbing Finger: 500 ± 25 G, 1000 ± 50 G, Speed Of Rubbing: 40 ± 2 Cycles/ Min
Product Name: Rub Tester Application: Leather, Textile



SATRA TM 173 IULTCS Rubbing Color Fastness Tester for Leather and Textile



1. Quick Details



model friction color fastness tester
Function test the degree of decolorization of dyeing leather after friction
Material: #304 stainless steel
Weight 35kg
Volume 46 × 28 × 48 cm
Corresponding test standard

ISO-11640, QB/T2537-2001, QB/T 2882-2007, SATRA TM 173





Application



IULTCS Rubbing Fastness Tester, designed to carry out a rub fastness test on the surface of leather to determine the amount of ‘marring’ of the leather surface or the finish and to assess the amount of color transfer from the sample to the rubbing pad under dry or wet conditions.

Test Procedure

The sample is placed on the test surface and clamped; pre-tensioning can be effected by adjustment of the knob or screw in requested percentage. The felt pad is inserted in the end of the rubbing head and the tester switched on. The material surface and the rubbing pad are inspected visually. In the case of colour transferring, the wool-felt rubbing pad is evaluated using the grey scale.



IULTCS Rubbing Fastness Tester Specifications



l Rubbing finger: 500 ±25 g(or 1000g by adding a load mass)

l Loading weight: 500 ± 10 g

l Dimension of base of finger: 15 x 15 mm

l Specimen: 120x20mm

l Rubbing stroke: 35 ~ 40 mm

l Speed of rubbing: 40 ± 2 cycles/min

l Counter: LCD,1-999,999 times, automatically stops



Specifications



Model load GX-5042
Friction hammer 500g
Auxiliary load 500g
Rubbing length 35mm ~40mm
Speed of abrasive head 40±2 R/min
Area of specimen 120×20mm
Motor DC 120W
Area of wool felt 15×15mm
Weight 5N, 9N for each
Counter LED,0~999,999
Power 1∮,AC220V,2A








Color Fastness Rub Tester Textile Leather Testing Equipment for ISO 11640 SATRA TM 173Color Fastness Rub Tester Textile Leather Testing Equipment for ISO 11640 SATRA TM 173
