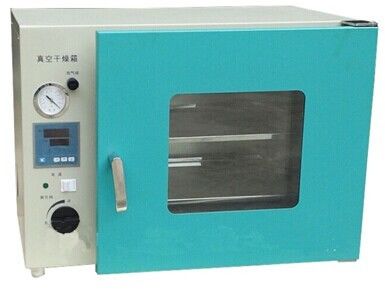

ISO UL Environmental Test Chamber , 133Pa High Temperature Laboratory Vacuum Drying Oven

ISO UL Environmental Test Chamber , 133Pa High Temperature Laboratory Vacuum Drying Oven

ISO UL Environmental Test Chamber , 133Pa High Temperature Laboratory Vacuum Drying Oven

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO, UL
Model Number: GX-3020-Z2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: non-fumigation wooden box
Delivery Time: 15 working day
Payment Terms: T/T, L/C
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Vacuum Degree: Up To 133Pa Temperature Range: RT+ 10~200 ℃
Heating Method: PID+S.S.R Control System: Intelligent Temperature Controller With Timing Function And Fast Temperature Recovery Time
Vacuum Pump: External Silent Vacuum Pump Heating Up Time: 50 ºC To 200 ºC Within 50 Min
Insulation Material: Glass Wool Safety Devices: No Fuse Breaker, Over Temp Protection, Ceramic Fuse

Vacuum degree 133Pa High Temperature Laboratory Vacuum Drying Oven



Usage:



Designed for dry, heat-sensitive, easily decomposable and oxidizable materials, the vacuum oven can be filled with inert gas, especially for complex ingredients.



Widely used in the electronics and chemical industries. Vacuum drying oven fully enclosed semi-closed system hot air circulation design, fast heating, high temperature control accuracy.



The whole machine is equipped with automatic temperature control, timing system, double over-temperature alarm device function. Can be customized according to customer requirements, reasonable structure, high thermal efficiency, energy saving, easy operation, easy maintenance, continuous and uninterrupted baking, improve product production efficiency and quality. Particularly suitable for drying and curing in dust-free environments in the electronics, mechanical, pharmaceutical, biological, optical and other industries.



Feature:



1, with timing function number micro-computer temperature controller, accurate and reliable temperature control.

2, the rectangular body studio, to maximize the effective volume.

3, tempered, bullet-proof double-glazed doors to observe the objects in the work room, at a glance.

4, the door closing elastic can be adjusted, the integrally formed silicone rubber sealing ring ensures high vacuum inside the box.

5, the studio is made of stainless steel plate (or drawing board). Ensure product durability

Technical Parameter



Inner Case Dimension (W*D*H) 300*300*275 320*320*300 415*370*345
Outer Case Dimension(W*D*H) 605*490*450 730*560*550 630*510*490
Temperature Range RT+10~200℃
Temperature Resolution 0.1℃
Temperature Wave ±1℃
Vacumm degree up to 133Pa
Shelf 2 layer (movable shelf)
Test chamber Material

 Inner: SUS 304 stainless steel

 Outer: Cold-rolled steel sheet with paint

vacuum meter  Arch Culverts
Input Power  1400W
Voltage  AC220V 50HZ
Ambient Temperature  +5~40℃
 Over-temperature protection  Automatic over load power off system
 Heating Method  PID+S.S.R
 Control System  Intelligent temperature controller with timing function and fast temperature recovery time
Vacuum Pump

External Silent vacuum pump



ISO UL Environmental Test Chamber , 133Pa High Temperature Laboratory Vacuum Drying Oven
