Battery Impact Testing Equipment UN 38.3.4.6 and IEC 62133 of  the battery testing equipment

Battery Impact Testing Equipment UN 38.3.4.6 and IEC 62133 of the battery testing equipment

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5066-NE

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Falling Ball Weight: 9.1kg Control System: PLC Touch Screen Control And Display
Impact Mode: Automatic Return, Automatic Grab Horizontal Bar: Diameter Of 15.8 Mm (5/8 Inch)
Impact Height: 610 Mm ± 25 Mm (0~1000mm Adjustable) Max. Battery Tested Size: 300*300*100mm (L*W*H)
Testing Item: UN38.3 T6 Impact
High Light:

Impact Testing Equipment UN 38.3.4.6

,

Impact Testing Equipment IEC 62133

,

Gravity Impact Tester IEC 62133

Product Description

Battery Impact Testing Equipment UN 38.3.4.6 and IEC 62133 of the battery testing equipment

Testing Machin Battery Impact testing Equipment Gravity Impact Tester UN 38.3.4.6 & IEC 62133

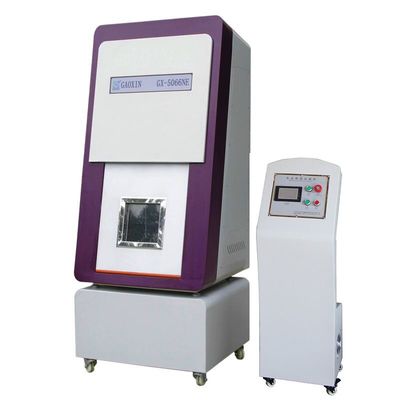

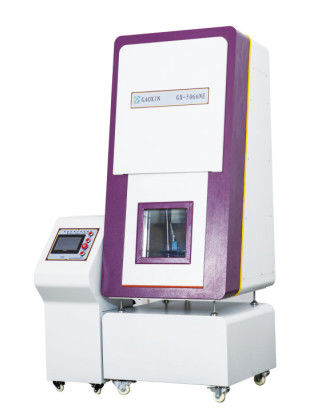

Model: GX-5066-NE



Equipment description


This machine is suitable for the destructive test of the battery (or battery pack) on the battery subjected to free weight impact from different heights from different heights, resulting in internal short circuit of the battery.





Specification





Drop hammer mass 9.1kg
Impact height 0~1000mm adjustable(usually 610mm)
Display PLC Touch screen display
Electric control by PLC program
Height display Accurate to 1mm by touch screen display
Impact mode Lift the hammer to a certain height and release it. The hammer falls freely in the vertical direction
Horizontal bar Steel rod with a diameter of 15.8 mm (5/8 inch)
Inner box material SUS304 stainless steel, iron and fluorine melted tape attached to the box, insulated, high temperature and flame resistant, easy to clean and maintain
Outer box material Cold rolled sheet baking treatment
Test mode Single test
Impact mode Automatic return, automatic grab
Lifting method Electric lift
Protective device Safety door switch, Automatic sensor door, the door closed when start to test, opened after testing finished
Max. Battery tested size 300*300*100mm (L*W*H)
Using electric AC220V±10%, 10A 50Hz 1∮
Power 2.2 kW
Weight About 320kg
