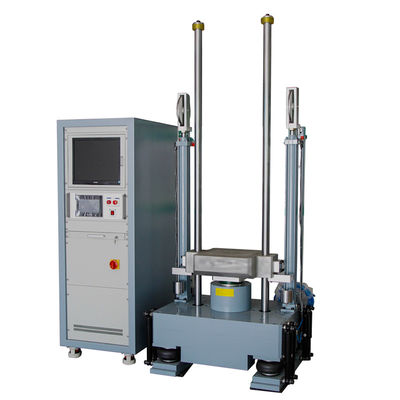

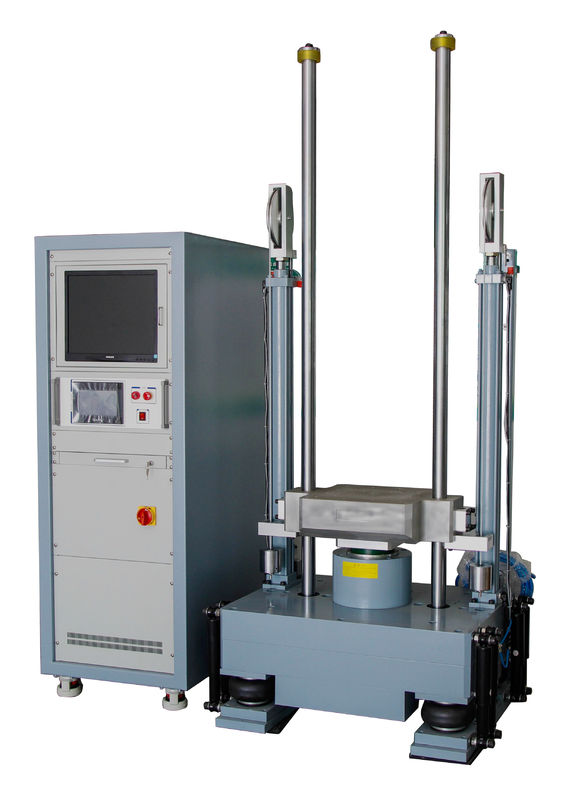

10kg Load Acceleration Shock Tester UN 38.3.4.4 With Windows Test System

10kg Load Acceleration Shock Tester UN 38.3.4.4 With Windows Test System

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO
Model Number: GX-5099-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: fumigation-free wood box
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Work Platform: 200 Mm×200 Mm Maximum Load: 10kg
Peak Acceleration: 20---1500 G Pulse Duration: 50-1ms
Impact Wave: Half Sin Operation System: Microsoft Windows2000/XP
Frequency Range: 0.5---12KHz Acceleration Range:: ±2500G
High Light:

10kg Load Shock Tester

,

UN 38.3.4.4 Shock Tester

,

Windows UN38.3 Battery Testing Equipment

Product Description

Testing Machine For The ISO Acceleration Shock Tester With Max. Load Of 10 Kg UN 38.3.4.4 With PC / Software





Input voltage 220V±10% 50Hz
Shock Tester Structure

This testing system consists of three units: shock frame with sample stage, shock propelling hydraulics, and shock control unit with PC & software

Work Platform: 200 mm×200 mm

Maximum Load: 10 kg or bigger

Volume: 600×550×1950mm

Peak Acceleration: 20---1500 G

Pulse Duration: 0.5---7ms

Weight: 650 kg

Measure System

Input Channel: 2

Sampling Frequency

192KHz

Input Method: Voltage, electricity

Coupling Method: AC,DC,ICP

Pulse Duration: 50-1ms

Voltage Range: -10V--+10V

Impact Wave: Half Sin

Operation System: Microsoft Windows2000/XP

communication interface: USB2.0

System Acceleration Sensor

Brand: B&W

Model: 22100

Output: Electric charges

Sensitivity: 3.93Pc/g

Frequency Range: 0.5---12KHz

Acceleration Range: ±2500G

Working Environment: -40~+160℃

Working Requirement

Power: 220V±10% 50Hz

Compressor air: 0.5--0.8MPa



Configuration



Items Description Model Number
1 Main machine GX-5099-S 1Set
2 Controller SKC-1 1Set
3 Measuring instrument ST-2 1Set
4 Accelerometer 22100 1Set
5 Computer Lenovo Yangtian 1Set
6 Waveform generator HB01 1Set
7 safety devices Sound and light alarm device 1Set
8 annex Tools, operating manuals, CD 1Set
9 Included Pressure bar / bead clamp 1Set



For more detail information please contact with us.
