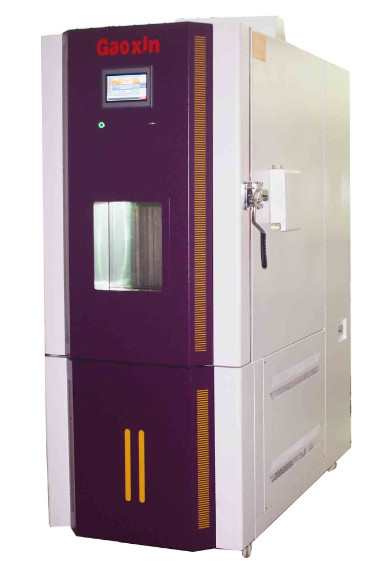

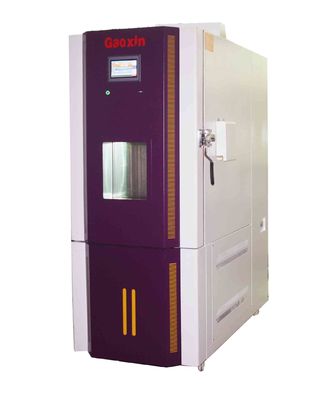

    1000L Programmable Fast Thermal Test Chamber (-70ºC - +150ºC, UN38.3.4.2) PLC Control System

    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: ISO 9001:2008
    Model Number: GX-3000-1000LT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: International wooden package
    Delivery Time: 25 working days
    Payment Terms: T/T
    Supply Ability: 30 sets per month
    Get Best Price Contact Now

    Detail Information

    Temperature Range: -70~+150℃ Cooling And Heating Speed: -40~75 ℃ Exchange Complete In 30mins
    Temperature Control System: 7" Color Touch Screen PLC PID+SSR/SCR Communication Interface: RS-232C And 485
    Compressor: TECUMSEH Refrigeration: R404A
    Test Space: 1000*1000*1000mm Vent Port: Built In The Back For Releasing Pressure Or Smoke In Case
    High Light:

    Testing Machine Instruments

    ,

    Industrial Test Equipment

    Product Description

    1000L Programmable Fast Thermal Test Chamber (-70ºC - +150ºC, UN38.3.4.2) PLC Control System

    1000L Programmable Fast Thermal Test Chamber



    GX-3000-1000LT



    1,000 liters programmable thermal test chamber, capable of studying the performance of rechargeable battery at rapidly changing temperature in the range from -40ºC to +75ºC. The chamber contains a built-in air blower that enables to achieve a uniform temperature field. The test temperature is consciously monitored by a built-in thermocouple and could be precisely controlled by the integrated PLC system.


    The thermal testing system is built based on the thermal test requirement UN 38.3.4.2 of Lithium-ion battery testing requirements of UN manual of tests and criteria. An observation window is mounted on the front panel to monitor the real-time status of recharge batteries.



    Test Chamber

    SS304 stainless steel 1.5mm thickness

    Heating insulation: 10cm foam polyurethane and fiberglass

    Single door with observation window, double insulation and tightness, Effective isolation of heat exchange inside and outside the chamber

    Observation window: 3 layer vacuum window, window with electric heating of anti-sweat

    Lighting: high brightness light

    Test hole for wire feed through: dia. 100mm, with 1 pc stainless cap and 1 pc silicon chock plug

    Stainless shelf: 2 layer (the space adjustable)

    Test space: 1000*1000*1000mm

    Equipment size: 1300*2150*2000mm

    Equiped with universal wheels, easy movement.

    Vent Port: built in the back for releasing pressure or smoke in case

    Pressure relief port: At the side of test chamber, automatic opened if case of internal tank pressure increase

    Temperature

    Range: -70~+150℃

    accurancy: ±0.01℃

    fluctuation: ≤±3℃

    Uniformity: ±1.5℃

    Cooling and heating speed: -40~+75℃ exchange complete in 30mins

    Temperature Control System

    7" color touch screen PLC set up the program, and display temperature profile

    PID+SSR/SCR

    Communication interface: RS-232C and 485 for remote control and computer control. can equiped with temperature recorder with extra cost

    Smart programmable temperature regulator

    Balanced temperature control system

    Refrigeration system: air-cooled heat dissipation method

    Compressor: fully enclosed compressors from TECUMSEH, France

    Refrigeration method: Two-stage compressor refrigeration system (environmental refrigerant R404A)



    Security system

    Over temperature protector

    Zero-crossing gate fluid power controller

    Air-burning protection protector

    Out- phase Anti-phase protection switch

    Compressor high voltage protection switch

    Compressor overheat protection switch

    Compressor overcurrent protection switch

    No fuse switch

    Ceramic fast fuse

    Line fuse and fully sheathed terminal

    Buzzer

    Power supply

    3∮, AC380V±10%, 50Hz, 20A
    Equipment power: 8KW

    Equipment conditions of use

    Laboratory temperature range 0~35°C

    Relative humidity: no more than 85%RH

    air pressure: 86~106Kpa

    No strong vibration around

    Direct sunlight or direct exposure to other heat sources

    Natural drainage facility

    Power supply conditions: Three-phase four-wire power supply, reliable grounding



    For more detail information please contact with us.
