GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear

GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: EN-344、345;ANSI-Z4;ISO20344; GB/T20991; GB/T21148; GB/T21147
Model Number: GX-5032

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International standard wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Hammer Weight: (EN,GB)20±0.2kg,(BS,ANSI,CSA)22.7kg Fall Height: (EN)0-1100mm
Impact Capacity: (EN)200J,(BS,ANSI)100±2J Impact Blade: (EN)3±0.1mm(R)(ANSI)25.4mm
Horsepower: AC1/8HP Base Load-bearing: At Least 600 Kg., Choose The Floor As The Bearing Surface
Metal Board: 400*400*40mm
High Light:

Electromagnet Control Impact Testing Equipment

,

GB/T20991 Impact Testing Equipment

,

GB/T20991 Comperssion Tester

Product Description

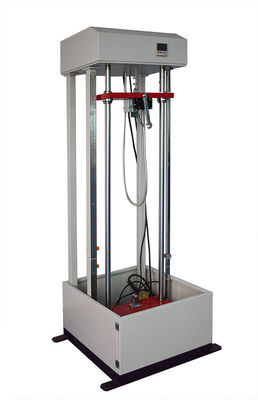

GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear

Comperssion Test Equipment EN Standard Electromagnet Control Safety Footwear Impact Testing Equipment



1.Product Name:Safety footwear impact testing machine

2.Product Model:GX-5032

3.Product Description:The tester is mainly used for the impact resistance test of the safety shoes toe head. Use the electromagnet to control the drop of hammer and drop from the set height. Check the damage or deformation of steel toe head of the shoes to evaluate its resistance to impact.

4.Test Standard:EN-344,345;ANSI-Z4;ISO20344; GB/T20991; GB/T21148; GB/T21147



5.Technical Parameter:

Hammer Weight

(EN,GB)20±0.2kg,(BS,ANSI,CSA)22.7kg

Fall  Height

(EN)0-1100mm

Impact Capacity

(EN)200J,(BS,ANSI)100±2J

Impact Blade

(EN)3±0.1mm(R)(ANSI)25.4mm

Horsepower

AC1/8HP

Base load-bearing

At least 600 Kg., choose the floor as the bearing surface

Metal Board

400*400*40mm

Volume

585×695×1815 mm

Weight

227kg

Power

3∮,AC 220V,5A



6. Product Structure

GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear 0GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear 1



7. Company information



Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.



Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service



GB/T20991 Electromagnet Control Impact Testing Equipment For Safety Footwear 2
