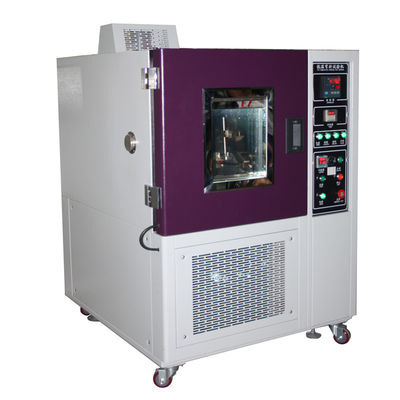

Rubber Frosting And Anti Hydrolysis Test Footwear Testing Equipment AC220V
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Model Number: | GX-5047 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 2000-5000 Per set |
| Packaging Details: | international standard strong package |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Model: | GX-5047 | Function: | Anti-hydrolysis Ability Test |
|---|---|---|---|
| Color: | White Silvery | Material: | Stainless Steel |
| Temperature Range: | 0℃～100℃ | Humidity Range: | 35～98%R.H. |
| Accuracy: | ±1℃, ±2.5%R.H. | Controller: | TEMI330 Button Type Controller |
| High Light: | Anti Hydrolysis Test Footwear Testing Equipment,Rubber Frosting Test Footwear Testing Equipment,AC220V Footwear Tester |
||
Product Description
Footwear Tester for Rubber Frosting Test and Shoes Materials Anti-hydrolysis Ability Test
1. Product Name:Frosting and Hydrolysis Tester
2. Product Model:GX-5047
3. Product Description:The testing machine is mainly used for the rubber frosting test and shoes materials anti-hydrolysis ability test. By simulating various kinds of climate environment, the machine can test the adaptability changes of the product. It can be widely used in tests of electronics, electrical appliances, metal, rubber, plastic, chemical, building materials, food...
4. Product Features:
① Use different test conditions such as high temperature, low temperature, constant temperature and humidity of the function separately.
② Overall fault indicator including super low temperature, water level, the end of the test and compressor overload.
③ Precise counter for user to know the testing time
④ Micro-computer temperature controller with PID value,upper and lower alarm and touch setting⑤Anti-hydrolysis test for leather and shoes materials; Frosting test for rubber materials.
5. Product Structure
6. Testing Steps
① Sample Preparation:Size of 50mm x 40mm with thickness of 5m,error within ±0.2mm. The effective sample for detecting sample quantity each time is generally not less than three.
② Testing Conditions:
1. Temperature 60℃,Humidity 92%RH
2. Temperature 23±2℃,Humidity 65%RH
③ Testing Steps:
a. Put the sample in the laboratory room for 24 hours.
b. Set the tester with specific temperature and humidity. Put the sample into the tester after the tester becomes stable. Attention that the distance between the samples should be no less than 5mm and the distance between the sample and tester wall should be no less than 70mm.
c. Close the tester door and start timing
d. Observe the test every 24 hours and record the results.
e. Take out the sample and observe the surface changes.
④ Testing Result: Shown by frosting degree
0 class-no frosting, no changes on the surface of sample
1 class-slight frosting,few crystal on the surface
2 class-frosting,the surface become light white
3 class-severe frosting, the surface of sample become white and creamy
7.Technical Parameters:
|
Temperature Range |
0℃～100℃ |
|
Humidity Range |
35～98%R.H. |
|
Accuracy |
±1℃, ±2.5%R.H. |
|
Inner Box Size(W*D*H) |
40*40*50cm |
|
Outward Box Size(W*D*H) |
85*81*115cm |
|
Inner Box Material |
Stainless Steel Mirror Plate (SUS 304) |
|
Outward Box Material |
Stainless Steel Mist Side Line Processing (SUS 304) |
|
Insulation Material |
Rigid Foam |
|
Controller |
TEMI330 Button Type Controller |
|
Power |
1∮,AC220V, 15A |
8. Product Accessories
1. Four height-adjustable frames in the tester chamber.
2. Two shelves made of stainless steel.
3. One drain pipe.
4. Operation guidebooks of machine and temperature controller.
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
