K6264 Vertical ROSS Rubber Testing Equipment For Shoe Sole Flexing Resistance Test
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-5023-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Vertical Type | ||
| Highlight: | Vertical ROSS Rubber Testing Equipment,K6264 Rubber Testing Equipment,Flexing Resistance Rubber Testing Machine |
||
Product Description
Flexing Resistance ROSS Rubber Testing Equipment For Shoe Sole , ASTM Standard
1. Quick Details
|
Alternative name |
Ross Flexing Resistance Tester |
|
Function |
Test flexing resistance of rubber sole |
|
Type |
ROSS |
|
Feature |
Only designed for rubber shoe sole; 90°flexing and folding action |
|
Weight |
56kg |
|
Volume |
610*500*550mm |
|
Corresponding test standard |
BS903, GB/T1689, CVS734, CNS734, K6264 |
2. Description

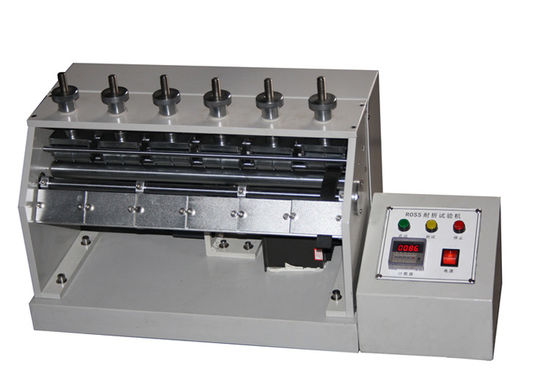

The ROSS shoe sole flexing resistance testing equipment is applied for testing flexing resistance of
rubber shoe sole at 90 degree angle.
Though successive folding and flexing, check the damage degree or cracking of rubber shoe sole
(specimen).
3. Features
a. It is suitable for rubber shoe sole.
b. Test flexing, bending resistance capability of specimen.
c. Folding angle is 90 degree, and it can be tested 6 groups shoe sole at the same time.
d. Able to custom according to customer’s specific requirement.
4. Specifications
|
Model |
GX-5023-A |
|
Specimen size |
6"(L)*1"(W) shoe sole, thickness 0.25" |
|
Number of specimen |
6 groups |
|
Speed |
100±3cpm |
|
Bending angle |
90° |
|
Counter |
LCD, 0-999 |
|
weight |
56kg |
|
Volume |
610*500*550mm |
|
Power |
1∮, AC220V, 5A |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
