SATRA TM144 EN13287 Friction Coefficient Tester For Shoes test equipment

SATRA TM144 EN13287 Friction Coefficient Tester For Shoes test equipment

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: SATRA TM144, EN13287
Model Number: GX-5100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International standard wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Alternative Name: Shoes Slip Resistance Tester Product Model: GX-5100
Test Standard: SATRA TM144, EN13287 Operating System: Windows
Volume: 1010×670×1900 Mm Weight: About 250kg
Power: 220V 50/60Hz Usage: Footwear / Wrist Strap Tester
Warranty: 1 Year Quality: High
Display: Digital Display
High Light:

Shoes Friction Coefficient Tester

,

SATRA TM144 Friction Coefficient Tester

,

EN13287 COF Testing Machine

Product Description

SATRA TM144 EN13287 Friction Coefficient Tester For Shoes test equipment

The Testing Machine Of The Friction Coefficient Footwear Testing Equipment For Floorings Computer System



1. Product Model:GX-5100



2. Description:

The tester determines the coefficient of friction between footwear outsoles and flooring surfaces under conditions simulating those experienced at the most critical parts of a typical walking step. The method is applicable to all types of footwear, outsole units, heel top pieces(top lifts) and sheet soling materials, also most types of floorings including matting and stair nosings.



3. Test principle:

A footwear outsole and a flooring surface are brought into contact under a predefined force. After a short period of static contact the footwear and flooring surface are moved relative to one another at a constant speed. The force required to move the surface is measured and its value after a defined period divided by the contact force to give the coefficient of friction, under the particular conditions of the test. The test may be carried out dry or with water or other contaminant on the flooring surface.



4. Test standard: SATRA TM144, EN13287



5. Technical Parameter:

Maximum vertical pressure

1000N

Maximum level  pressure

1000N

Compression air

Minimum of 5 bar

Maximum test speed

500mm/s

Minimum test speed

50mm/s

Static contact time

0—5s

Vertical sensor

1.25KN

Level sensor

0.8KN×2

Computer

Applicable to software, including DVD record

Operating system

Windows XP

Display

15 inches, colorful LCD

Data query rate

1000 data point/second/channel

Data channels

4

Volume

1010×670×1900 mm

Weight

About 250kg

Power

240/220V -50Hz;220V- 60Hz;110V -60Hz; single phase

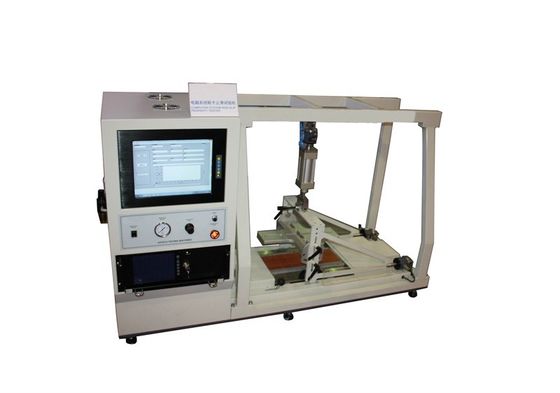

6.  Picture

SATRA TM144 EN13287 Friction Coefficient Tester For Shoes test equipment 0



7. Company information



Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service



FAQ

Q1: What is the warranty for the equipment?

A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.

Q2: What is the payment way?

A2: T/T ; 50% deposit and 50% before shipment.

Q3: How long the delivery time is?

A3: Generally,the delivery time is about 15-25 days, except for the special customization.

Q4: How to prove your product is qualified?

A4:The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.

Q5:Is the package strong enough for long-distance shipment?

A5:Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.
