GB/T20661 LCD Display Shoe Bending Waterproof Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-5022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Vertical Type | Product Name: | Shoes Bending Water Proof Testing Equipment |
| High Light: | LCD Display Shoe Waterproof Testing Machine,GB/T20661 Waterproof Testing Machine,LCD Display Shoe Bending Testing Machine |
||
Product Description

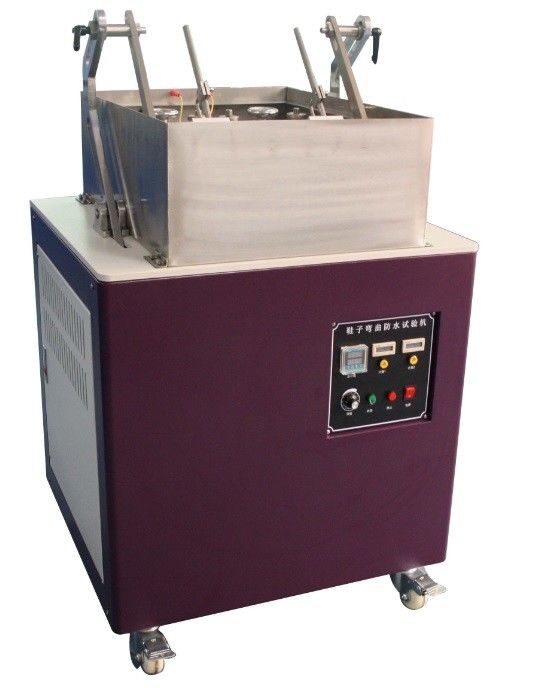

LCD Display Shoes Bending Water Proof Testing Equipment, Flex Angle of 0-60
1. Quick Details
|
Alternative name |
shoes bending water-proof tester |
|
Function |
The tester is applied to test water-proof of finished shoes, shoe sole |
|
Principle and method |
Fix the heel parts of shoes, lift front parts and do successive bending |
|
Weight |
300kg |
|
Volume |
(W×D×H) 110×93×127 cm |
|
Corresponding test standard |
GB/T20661-2007 5.15 |
2. Description
This machine is designed for measuring the waterproofness of the finished shoes.
Steel balls are placed into the specimen as a sensor, and a sensitivity adjustable sensing system is
used for detecting water permeation into the specimen.
This machine is applicable to flex shoes dynamically or measure shoes statistically.
Fully automated water supply and drainage systems; Specially designed eccentric wheel is adjustable;
The pneumatic clamping device is used and its clamping height is adjustable;It automatically detects
water permeation and lights up the LED alarm lamp;Either timer or counter is selectable according to
test requirements.
3. Features
a. Elegant and nice structure design
b. Easy to operate
c. Excellent equipment to check quality of a shoes
4. Specifications
|
Model |
GX-5022 |
|
Horizontally speed |
(20 ±2) cpm |
|
Water flow rate |
(0.50 ±0.1) L/min |
|
Counter |
0.01S~9999h |
|
Flexing Angle |
0~60° |
|
Adjustable volume |
(W×D×H) 110×93×127 cm |
|
Weight |
300kg |
|
Power |
1∮,AC220V, 3A |
