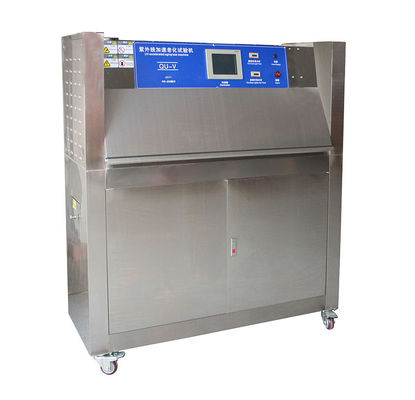

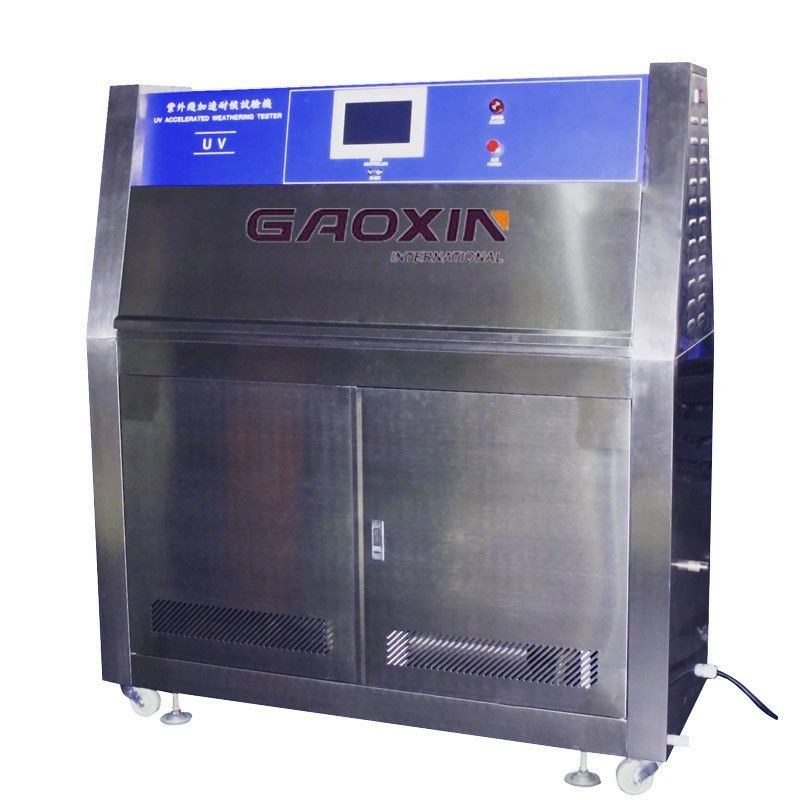

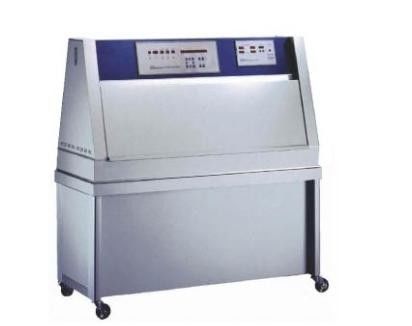

SAE J2020 JIS D0205 Ultraviolet Accelerated Aging Test Chamber For Leather

SAE J2020 JIS D0205 Ultraviolet Accelerated Aging Test Chamber For Leather

Product Details:

Place of Origin: Guangdong, China
Brand Name: GAOXIN
Certification: ISO 2009
Model Number: GX-3050

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Standard Exporting Wooden Case
Delivery Time: 15 work days
Payment Terms: FOB Shenzhen T/T
Supply Ability: 50 per months
Get Best Price Contact Now

Detail Information

Working Room Space: 450×1170×50mm Outside Volume: 580×1280×145mm
Temperature Range: RT+10℃~70℃ Humidity Range: 90~98%R·H
Humidity Uniformity: ±2% Temperature Uniformity: ±2℃
Temperature Fluctuation: ±0.5℃ Humidity Fluctuation: ±2%
Standard Sample: 75×150 Mm Or 75×300mm(or Specified By User) Water Depth: 25 Mm, Auto Control
Valid UV Area: 900×210 Mm Ultraviolet Wavelength: UV-A 315-400nm;UV-B 280-315nm
High Light:

Ultraviolet Accelerated Aging Test Chamber

,

JIS D0205 Accelerated Aging Test Chamber

,

SAE J2020 UV Aging Test Chamber

Product Description

SAE J2020 JIS D0205 Ultraviolet Accelerated Aging Test Chamber For Leather

Ultra Violet Accelerating Aging Tester Leather Plastic LED Bulb Lab Aging Chamber UV Aging Test Chamber



Description:

The UV aging test chamber can simulate the influence of the environment including sunshine, rain and dew by exposing the sample to the controlled inter-circulation of the sunshine and moisture with the high temperature. The tester simulates the sunshine using the UV lamp, the moisture using the condensation or spray. And it is essential to the aerospace, automotive, home appliances, scientific research and other fields.



Test standard:

GB/T14522-93; GB/T16585-1996;  GB/T16422.3-1997;  ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534; EN 1062-4,  BS 2782;JIS D0205;SAE J2020



Structure and Features:

(1)   Material:SUS stainless steel with paint

(2)   Cover material:SUS stainless steel board with paint

(3)   Eight UV-A or UV-B tubes in the working room

(4)   Heating method: water tank type heating with rapid speed and uniformity

(5)   Box cover: Double-direction flip

(6)   Automatic water supplement to avoid air burning

(7)   Sample shelf: stainless steel or Aluminium alloy

(8)   Mobile wheel : High quality PU wheel on the bottom of the box

(9)   Drainage system: vortex type and U type deposition device

(10) The surface of the sample is parallel to that of the UV light

(11) Auto sprayer with the adjustable water pressure

(12) The machine would cut off the power supply once the door opens when it is testing to protect worker from any hurt.

(13) Over-temperature protection: The machine would cut off the power when the temperature inside is too high.



Control  and System:

(1)   Temperature and humidity controller: Korea high-precision digital micro-computer type integrated controller with the accuracy of  0.1℃ and resolution of ±0.1℃;

(2)   Sensor: PT100 Platinum resistance temperature measurement;

(3)   Control method:The thermal equilibrium temperature humidity method;

(4)   P . I . D+S.S.R system control;

(5)   Protection device: No-fuse protection switch; over-temperature protection; low-water level protection; over-load and electric leakage protection.



Technical Parameter:

Working room space

450×1170×50mm

Outside volume

580×1280×145mm

Temperature range

RT+10℃~70℃

Humidity range

90~98%R·H

Humidity uniformity

±2%

Temperature uniformity

±2℃

Temperature fluctuation

±0.5℃

Humidity fluctuation

±2%

Standard sample

75×150 mm or 75×300mm(or specified by user)

Water depth

25 mm,auto control

Valid UV area

900×210 mm

Ultraviolet wavelength

UV-A 315-400nm;UV-B  280-315nm

Test time

0~999H  adjustable

Blackboard temperature

40℃~65℃

Ultraviolet light, dew time

Alternative

The machine can accept customization
