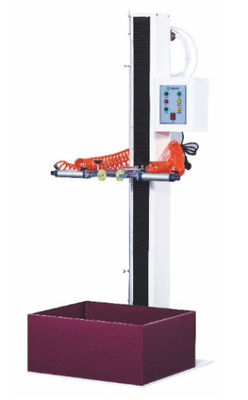

• Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone
Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone

Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-6052

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Material: 304# Stainless Steel Color: Silver
Type: Vertical Type Structure: Single Column
Fixture: Pneumatic Structure Usage: Free Fall Test
Applicable Object: Small Electronics Falling Method: Multi Angle (edge, Corner, Surface)
High Light:

Single Wing Free Fall Drop Tester

,

Mobile Phone Free Fall Drop Tester

,

Electromagnetic Mobile Phone Testing Equipment

Product Description

Professional Mobile Phone Testing Equipment , Small Electronics Free fall testing equipment



1. Quick Details



Alternative name

Free fall testing equipment

Function

Test whether the specimen is damaged drop from certain height, suitable for small consumer electronics.

Type

Single wing electromagnetic type

Weight

80kg

Volume

700mm*900mm*1650mm

Corresponding test standard

UL2054-2008, SJ/T11170, IEC62133, SJ/T11169





2. Description



Free fall testing equipment is for lithium ion battery safety testing equipment in battery production line

and lab research



a. This machine is suitable for mobile phone, free radio, electronic dictionary, intercom telephone,

CD/MD/MP3 and other small consumer electronic products and components of the drop test, to

assess its safety performance and durability.

b. The key element of reliable performance, variety of drop floor for use, can meet the needs of

different test standards.

c. The free fall tester is applied pneumatic structure. Fix the specimen on the special fixture

(displacement is adjustable), press dropping key, then the cylinder release and specimen

drop free.

d. The falling height can be adjusted from up and down, and attached altitude scale.

e. The key parts of the tester is imported from Japan, reliable on quality.





3. Features



a. The free drop tester model GX-6052 is used for small consumer electronics such as mobile, MP3, electronic dictionary

b.  The fixture method is pneumatic adsorption.

c. The specimen is under 2kg.

d. The base panel can be cement board, acrylic board, steel board.





4. Specifications



Model

GX-6052

Max. height of specimen

300-1500mm (or customer specified)

Max. Weight of specimen

2kg±100g

Fixture method

Pneumatic absorption

Base panel

Cement board, Acrylic board, stainless steel board

Method of dropping

Multi-angle (edge, angle, surface)

Dimension of base panel

500× 600× 200mm

Air pressure

1MPa

Net weight

80kg

Power

1∮ ,220V,5A

Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone 0Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone 1

Single Wing Electromagnetic Free Fall Drop Tester For Mobile Phone 2
