• 220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head
220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head

220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-3225

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Crush Tester Machine Touch Screen: Yes
High Light:

220V Crush Tester Machine

,

Mobile Phone Crush Tester Machine

,

Silica Gel Sitting Head Phone Tester

Product Description

220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head

Touch Screen Mobile Phone Crush Tester With Silica Gel Sitting Head





This machine is suitable for mobile phones and other products to simulate the repeated life test of seat pressure. With a certain hardness of silica gel as the head, drive with a cylinder, adjust a certain pressure, the number of times to see the damage degree.



1. Product Name: Mobile phone soft pressure tester


2. Product Model: GX-3225



3. Technical Parameter:

Number of stations One
Action execution element Cylinder
Pressure range 10 ~ 500N (configurable), test extrusion pressure: 250N
Frequency of sitting pressure 1 ~ 30 times/min (configurable)
Sitting head Soft head (silica gel material)
Sitting pressure support surface Elastic braid (can be specified)
Maximum allowable specimen size W200xD100xH40mm
The counter 8-Bit (built-in)
The voltage 220V
Use an air source ≤0.5Mpa
External dimensions W550 x D480 x H1180mm
Weight 80kg

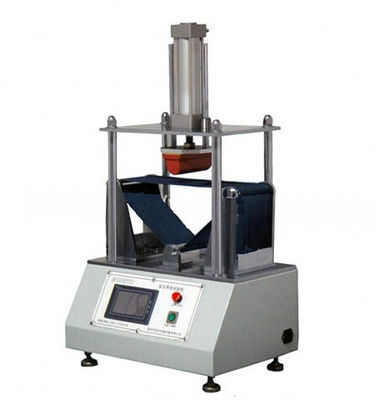

4. Picture



220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head 0

220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head 1220V Mobile Phone Crush Tester Machine With Silica Gel Sitting Head 2
