• 1000mm 50mm Double Drum Drop Tester For Mobile Phone
1000mm 50mm Double Drum Drop Tester For Mobile Phone

1000mm 50mm Double Drum Drop Tester For Mobile Phone

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO
Model Number: GX-5618-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Drop Testing Machine Power: 220V 3A
High Light:

Double Drum Drop Tester

,

1000mm Mobile Phone Drop Tester

,

50mm Double Drum Drop Testing Machine

Product Description

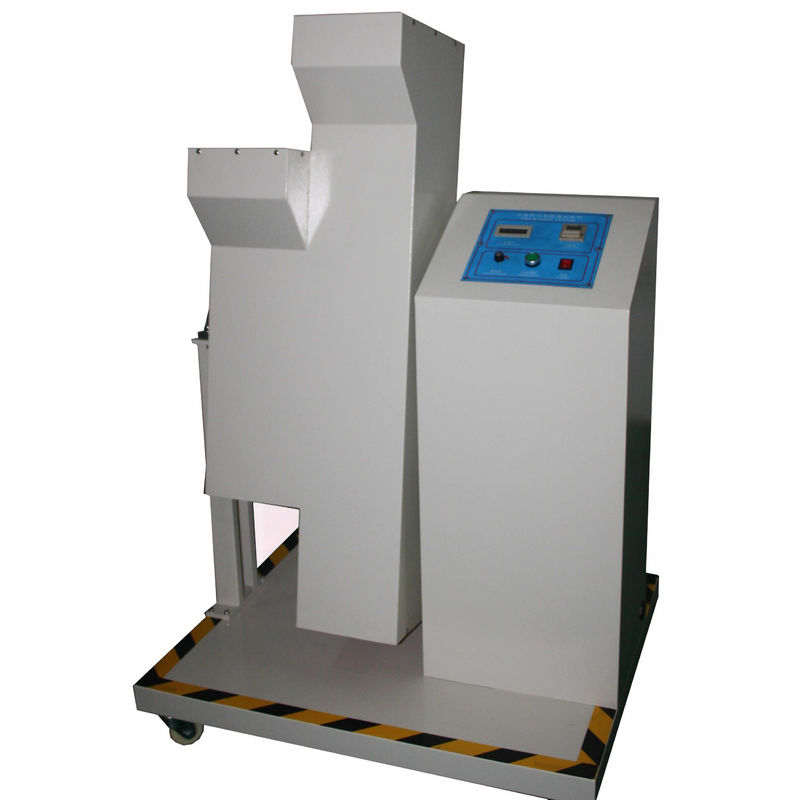

1000mm 50mm Double Drum Drop Tester For Mobile Phone

1000mm 50mm Double Drum Drop Testing Machine For Mobile Phone





This machine is specially used for testing the durability of the shell of small electronic products, the performance of the internal structure to resist (heavy) fall and the adaptability to withstand repeated free fall.



1. Product Name: Double drum drop testing machine


2. Product Model: GX-5618-A



3. Test principle:

Simulate the user in the process of use, mobile phone and other small objects free falling action test.

Put the measured object into the drum manually → close the transparent cover and protective device → motor drives the drum to rotate counterclockwise → drop twice in one rotation.



4. Technical Parameter:

Drive way By the motor to realize the drum rotation
Drop height 1000mm
Structure advantages Drum structure to ensure the mobile phone random drop, avoid non - standard friction and collision movement
Location number Simplex bit
Mode of operation Button
Range of fall height 1000mm
Drop speed 5-15 times/min
Counter LED, 6 bit counter
Power 300W
Use the power supply 220V, 3A
Overall dimensions 700㎜*1200㎜*1200㎜
The weight of the 60kg


1000mm 50mm Double Drum Drop Tester For Mobile Phone 01000mm 50mm Double Drum Drop Tester For Mobile Phone 11000mm 50mm Double Drum Drop Tester For Mobile Phone 2
