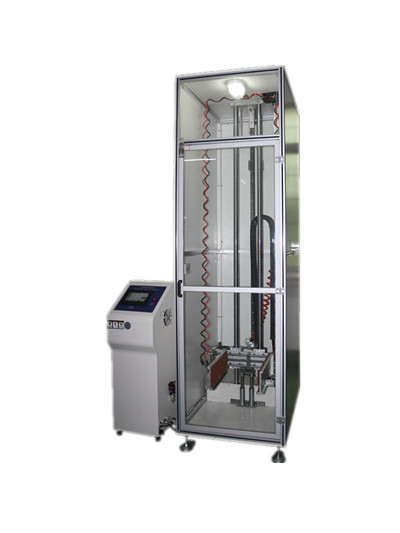

PLC Controlled Mobile Phone Directional Drop Test Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | CE |
| Model Number: | GX-5617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets |
|
Detail Information |
|||
| Name: | Drop Test Machine | Control System: | PLC |
|---|---|---|---|
| High Light: | PLC Controlled Drop Test Machine,Mobile Phone Directional Drop Test Machine,PLC Controlled Drop Testing Machine |
||
Product Description
PLC Controlled Digital Mobile Phone Directional Drop Test Machine
The main function of this machine is to evaluate the impact on product performance that customers may accidentally drop the product when the product is actually used. It is suitable for: mobile phones, PDAs, telephones, electronic dictionaries, CDs, MP3s, adapters and other small fee electronic products. Original posture and acceleration drop test.
This model is currently the most widely used in the mobile phone manufacturing industry.
| Control method | PLC man-machine touch interface |
| Maximum test height | 300-2000mm (can be set) |
| Maximum drop product weight | 1kg |
| Minimum drop height | 300mm |
| The maximum test product size | 100×100mm (more than this size needs to be customized) |
| Test drop point | 0°, 45°, 90° |
| Counter | 0—999999 times (can be set) |
| Drop angle error | about 1°~3° |
| Vacuum chuck switching mode | Three vacuum chucks can be switched electronically (independently) |
| Parameter setting | drop height and adsorption height can be set, and the number of drops is displayed/cleared |
| Falling floor medium A3 steel plate | (Acrylic board, wood board, marble board and other materials can be selected) |
| Drop method | Pneumatic drop |
| Lifting method | electric lifting |
| Use air source | ≥0.5MPa |
| Power supply | 1∮, 220VAC±10%, 50Hz |
| Machine weight | 75Kg |
