AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer

China AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer supplier
AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer supplier AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer supplier AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer supplier AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer supplier

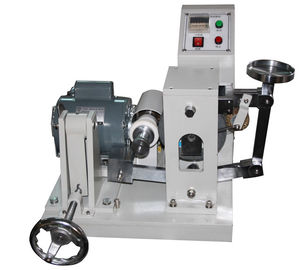

Large Image :  AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5014

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Color: Grey
Type: Vertical Type

AKRON Rubber Testing Equipment For Abrasion Resistance With LCD

Displayer





1. Quick Details



Alternative name

AKRON abrasion resistance rubber test machine

Function

Test anti-abrasive performance of rubber, shoe sole

Type

AKRON

Material:

#304 stainless steel

Weight

57kg

Volume

570×520×450cm

Corresponding test standard

BS903, GB/T1689, CVS734, CNS734, K6264





2. Description



This tester is used to measure the wear resistance of rubber. The rubber specimen will be rubbed under

 the wheel at a certain angle and under a certain load,

Setting rotating number, the tester will stop when it reaches setted rotating number.

Removing the specimen and weighing it on gravity scale with high accuracy, compare with rubber before

 friction and get rubber consumption.

Though specific format, get consumption volume of rubber, and know the rubber abrasion resistance

capability.





3. Feature



a. Auto electronic counter.

b. Abrasion rotating times can be set.

c. Auto stop when get the setted times.

d. Able to custom according to customer’s specific requirement.





4. Specifications



Model

GX-5014

Specimen

Exterior diameter 60.5mm, interior diameter 11.5, thickness 13mm, length

 220mm; shore 60-70

Range of plastic axle and

wheel axis angle

0°--45°(generally 15°)

Speed of rubber wheel rotation

250±5r/min for BS; 76±2r/min for GB

Speed of grinding wheel speed

34r/min

Grinding wheel

Exterior diameter 150mm, thickness 25mm,  particle size 36#; centre hole

32mm;

grinding material aluminum oxide

Load

2LB; 6LB

Counter weight

2.5kg

Counter

LCD display; 0 -999

Power

1∮, AC220V, 5A

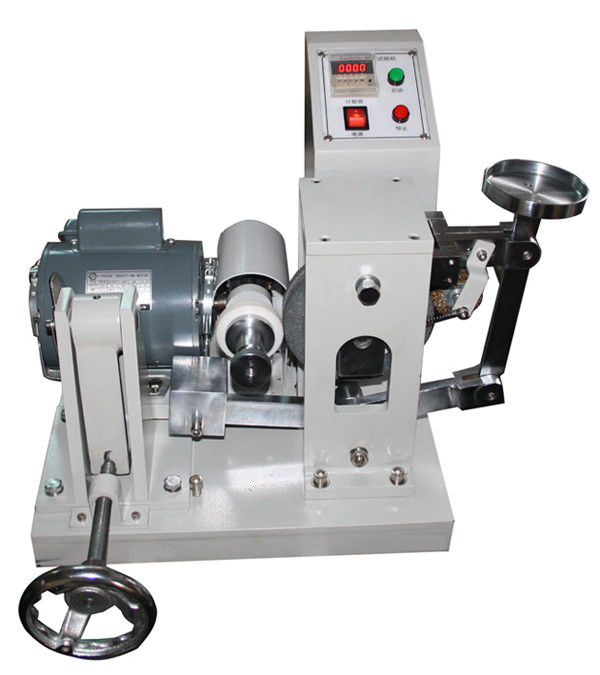

5. Product Picture

                                    AKRON Rubber Testing Equipment For Abrasion Resistance With LCD Displayer
