Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5034

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Material: 304# Stainless Steel Color: Grey
Type: Vertical Type Weight: 101kg
Volume: 110×93×127 Cm (W×D×H) Swing Arm: φ25mm
Specimen Adjustable Range: 0~25mm(H), Angle 0~45°
High Light:

shoe tester

,

shoe testing machine

,

Woman's Shoes Heel Impact Tester

Product Description



Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS-5131,SATRA TM20 Standard





1. Quick Details:



Alternative name

Woman's Shoes Heel Impact Tester

Function

The tester is applied to test impact durability of woman's shoe

Principle and method

Fix the heel parts of shoes

Weight

101kg

Volume

(W×D×H) 110×93×127 cm

Corresponding test standard

 BS-5131,SATRA TM20





2. Description:

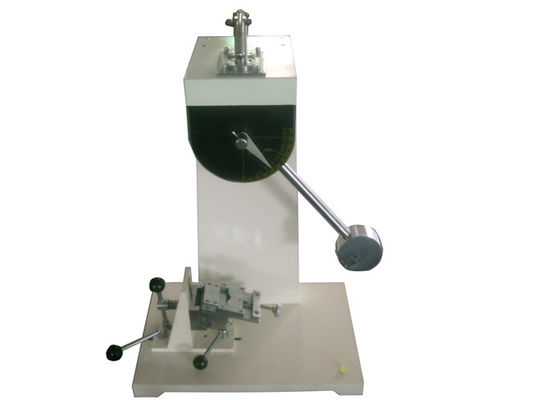

Woman's shoes  Heel impact tester simulate female wearing high heels on walking and then to test the

resistance of sudden shocks, it also can test heel toughness made of plastic of casting material.

Specimen clamped by fixture fixed in the specimen pedestal, of which height and slope can be adjusted,

The energy of testing impact, successive increases, until the heel broken, read the impact index.





3. Features:



a. Elegant and nice structure design

b. Easy to operate

c. Test impact durability of woman's high heel shoes





4. Specifications:



Model

GX-5034

Capacity

0~18.3J(13.5ft-lb); Min. Reading 0.68J(0.5ft-lb)

Swing arm

φ25mm

Energy of horizontal swing

17.3N-m(12.7ft-lb)

Dimension of impact hammer

φ108mm,49.2mm(D)

Dimension of water channel

42×42×32cm

distance between impact hammer center to axis center

432mm

Impact edge

25×6×35mm(W×D×L),3mm(R)

Specimen adjustable range

0~25mm(H), angle 0~45°

Volume

63×40×105cm

Weight

101kg



Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 0Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 1

Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 2
Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 3
Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 4
Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 5
Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 6
Easy Operation Impact Durability Woman's Shoes Heel Impact Tester , BS - 5131 , SATRA TM20 Standard 7
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
