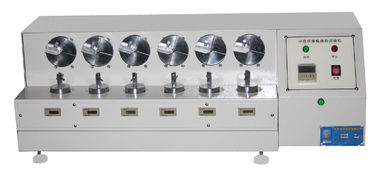

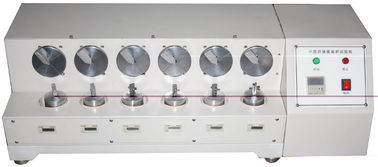

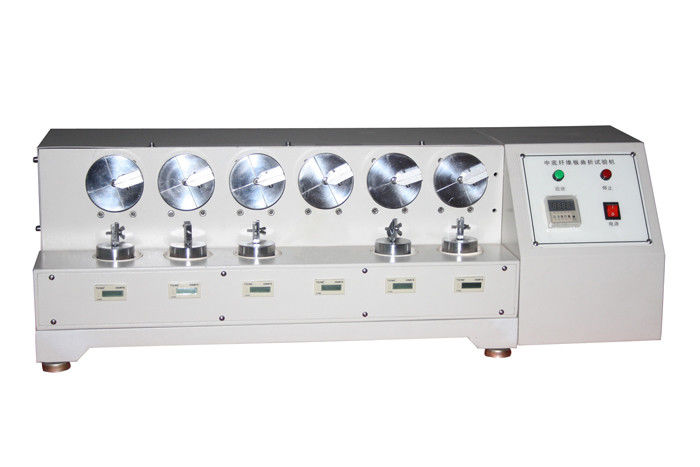

EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test

EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test

    • EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test
    • EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test
    • EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test
  • EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test

    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: ISO 2008
    Model Number: GX-5075

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15 working days
    Payment Terms: FOB Shenzhen, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Material: 304# Stainless Steel Color: Silver
    Type: Vertical Type Weight: 98kg
    Volume: 100*53*30CM Counter: LCD 0-999,999
    Power: 1∮,AC220V,3A Width Of Fixture: 144MM



    EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test





    1.Quick Details:



    Alternative name

    Shoe Sole Bending Testing Machine

    Function

    Test bending resistance of shoe outsole

    Type

    Sole flexing durability tester

    Weight

    98kg

    Volume

    100*53*30CM

    Corresponding test standard

    EN344, SATRA TM161, ISO17707,GB/T20991





    2.Description:



    Shoes Sole Bending Tester is used to test the flexing resistance of shoe soles under continuous movement.

    Before test, plunge some holes at the maximum bending position, and affix specimen at both grips,one fixed,

    one movable.Specimen runs flexing owing to the movement of machine. After a certain test cycles, discharge

    specimen and inspect how the specimen breaks.





    3.Features:



    a. Elegant and nice structure design

    b. Easy to operate

    c. Test flexing durability of finished shoes





    4.Specifications:



    Model

    GX-5075

    Angle of flexing

    90°

    Flexing speed

    125-150CYCLES/MIN

    Diameter of circular shaft

    ¢30mm

    Width of fixture

    144MM

    Number of specimen for once test

    3pcs

    Counter

    LCD 0-999,999

    Dimensions

    100*53*30CM  ( L x W x H )

    Weight

    98kg

    Power

    1∮,AC220V,3A

    Accessory

    One pin punch for EN standard





    EN344 , SATRA TM161 Standard Footwear Testing Equipment For Midsole Fiberboard Flexing Test
