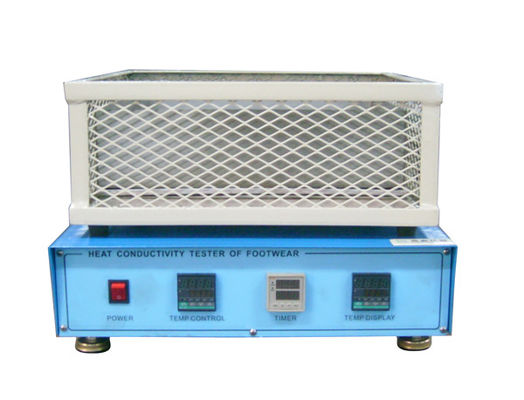

Industrial Footwear Testing Equipment For Thermal Insulation Testing

China Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier
Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier Industrial Footwear Testing Equipment For Thermal Insulation Testing supplier

Large Image :  Industrial Footwear Testing Equipment For Thermal Insulation Testing

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-5090

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Color: Silver
Type: Vertical Type Weight: 40kg
Volume: 105×45×55cm Power: 1∮,AC220V, 3A

Footwear Testing Equipment For ISO , Thermal Insulation Tester For Shoes





1. Quick Details:



Alternative name

Thermal Insulation Tester For Shoes

Function

Test flexing durability of lather shoes, leisure shoes...

Type

Electric drive; DC motor

Weight

40kg

Volume

105×45×55cm

Corresponding test standard

ISO 8782-1 , ISO 20344,GB/T 20991





2. Description:



Shoes Thermal Insulation Tester is used to determine the heat insulation performance for the whole shoe.

Place the specimen (a whole shoe) on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside of the shoe.

Test method: heat the box filled with sands to 150 ℃. Cover the hot sands on the shoe upper and outsole, record temperature change of the shoe lining within 30 minutes. The temperature is exact to 0.5 ℃.



3. Features:



a. Test thermal insulation and heat resistance of shoes

b. Electronic motor drive

c. It is easy to operate.





4. Specifications:



Model

GX-5090

Area of sands covered

(40±2)cmX(40±2)cm; with at least 5cm height

Box with sands filled

Installed with 150±5℃ heat transfer plate

Sand Granular Size

0.3~1.0mm

Heat-transfer medium

Ф5mm steel ball with total quality 4kg

Accuracy of temperature control

±0.5℃

Max. Temperature of heating panel

250℃

Heating power

2.5KW

Test area

250×460mm or 400×400mm

Total volume

105×45×55cm

Weight

40kg

Power

1∮,AC220V, 3A



Industrial Footwear Testing Equipment For Thermal Insulation Testing
