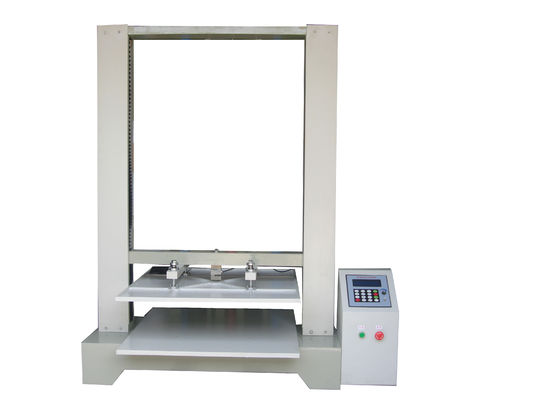

Micro Computer Paper Testing Equipments For Carton Compression Resistance Test
Product Details:
Place of Origin: | China |
Brand Name: | Gaoxin |
Certification: | ISO 2008 |
Model Number: | GX-6010-M |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | Non-fumigation wooden box |
Delivery Time: | 15 working days |
Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Detail Information |
|||
Material: | 304# Stainless Steel | Color: | Silver |
---|---|---|---|
Displayer: | Computer | Max. Pressure: | 10T |
Feature: | High Capacity; Double Columns | Usage: | Test Compression Resistance Of Carton |
Applicable Object: | Carton, Other Packaging Box | Speed: | 10mm / Min |
High Light: | paper testing machine,paper testing instruments,Micro Computer Paper Testing Equipments |
Product Description
Micro Computer Paper Testing Equipment For Carton Compression Resistance Test
1. Quick Details
Alternative name |
Box Compression Tester |
Function |
Test compression resistance of corrugated carton and other materials packaging box; Used to determine loading capability and piling height |
Feature |
Micro computer controller |
Weight |
450kg |
Volume |
195×120×180cm |
2. Description
Carton box compression tester is mainly used for testing compression resistance of corrugated carton
box and other material packaging box, determining loading capability and piling height of carton box.
The test can check the quality and compression strength of carton box, and provides basis to avoid
damage and lost caused by poor quality carton in the process of using, carrying, storage, piling up,
and transportation.
The carton box compression tester can be used to do stacking test, and the result can be taken as
important reference for factory to determine height of piling-up packaging box.
Test standard applied:
TAPPI-T804, JIS-Z0212, GB4857.3-84, ISO2234-1985, GB4857.4-8, ISO2872-1985
3. Features
(1). Micro computer controlling system
(2). The tester is mainly used to check compression resistance of corrugated carton box.
(3). The tester can also do stacking test.
(4). Simple structure and easy to operate
4. Specifications
Model |
GX-6010-M |
|
Capacity (optional) |
1T 2T 5T 10T |
|
Unit (switchable) |
N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
|
Load resolution |
1/10000 |
|
Load accuracy |
±1% |
|
Load induction |
Load cell |
|
Force display |
LED digital display |
|
Printing function |
Serial number, peak value, average value, recordable |
|
Load magnifying rate |
stepless |
|
Test space |
120×120×100cm |
|
Test speed |
0.5~1000mm/min |
|
Stroke resolution |
0.001mm |
|
Motor |
AC servo Motor |
|
Structure |
Seamless precise screw |
|
Dimension (WxDxH) |
195×120×180cm |
|
Dimension of controller |
37×56×69 cm |
|
Protection device |
Over-load, over-pressure, position limitation protection device |
|
Weight |
550kg |
|
Power supply |
1∮,220V/50HZ |
