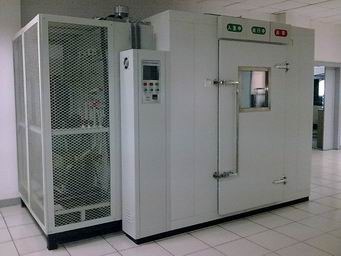

Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber

Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber

    • Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber
    • Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber
    • Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber
  • Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber

    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: ISO 2008
    Model Number: GX-3000-L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15 working days
    Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Material: 304# Stainless Steel Color: Silver
    Displayer: Touch Screen Test Standard: IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91
    Controller: Programmable Controller Usage: High Termperature, Low Temperature, And Humidity Resistance Test
    Applicable Object: Optical Fiber, LCD, Battery, Computer, Mobile Spraying Method: Continuous Spray Or Intermittent Spray

    Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber​





    Quick Details



    Alternative name

    Programmable temperature and humidity testing machine

    Function

    Test high and low temperature, moisture resistance of various

    products

    Type

    Programmable controlling system and touch screen display

    Weight

    Customer specified

    Internal space

     Customer specified

    Corresponding test standard

    IEC 68-2-6(FC), GB2423, JJG189-97,  GB/T13309-91





    Equipment summary:

    The environmental condition test machine is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: Computer terminals, vehicle parts.


    Corresponding standard:

    1. GB11158 Technical conditions for high-temperature testing room
    2. GB10589-89 Technical conditions for low-temperature testing room
    3. GB/T10586-89 technical conditions for humidity testing room
    4. GB/T2423.1-2001 testing methods for low-temperature
    5. GB/T2423.2-2001 testing methods for high-temperature
    6. GB/T2423.3-93 technical conditions for humidity testing room
    7. GB/T2423.4-93 testing method for alternating hot and humid
    8. IEC60068-2-1.1990 testing methods for low-temperature
    9. IEC60068-2-2.1974 testing methods for high-temperature
    10. GJB150.3 High-temperature test
    11. GJB150.4 Low-temperature test
    12. GJB150.9 muggy test
    13. GB/T2423.22 temperature test


    Applicable Industry

    The environmental condition test machine was used in defense industry, aerospace industry, automation components, automotive parts, electrical and electronic parts, plastics, chemical, pharmaceutical industries and related products


    Features of environmental condition test machine:

    1, large walk-in constant humidity and temperature testing machine has a very wide range of controlling the temperature and humidity that can fulfil users needs. It is stable, balanced heating and humidification performance, it also can be high accuracy and high stability for temperature and humidity control performance,
    2, walk-in constant humidity and temperature testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display. Optional equiped with temperature and humidity records
    3, Refrigeration circuit of large walk-in constant humidity and temperature testing machine automatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
    4, Door of large walk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.
    5, large walk-in constant humidity and temperature testing machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.


    Technical Parameter

    Size (cm) According to customer specified size for design
    Temprature range -65 degree ~+80 degree( A:0 degree, B:-20 degree, C:-40 degree, D:-65 degree );
     capacity (low-temperature:A~D) option
    Humidity range 20%~95%R.H.
    Accuracy/uniformity ±0.1 degree, ±0.1%R.H. / ±1.5 degree,±5.0%R.H.
    Accuracy/volatility ±1.0 degree, ±2.0%R.H./±0.5 degree, ±3.0%R.H.
    Cooling time About 4.0/minute
    Inside material stainless steel
    Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
    Cooling sytem Water-cooled / two-stage compressor
    Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
    accessories recorder(option), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball
    controller Korea TEMI or Japan OYO brand option
    compressor France's Tecumseh Brand
    power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz




    Box Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test ChamberBox Dimension Custom-made Walk in Alternating High Low Temperature Humidity Test Chamber Environmental Test Chamber
